£353.97 £294.97

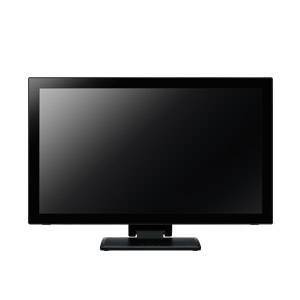

AG Neovo TM-23 touch screen monitor

£353.98 £294.98
In stock
SKU

TM-23

Need help ordering? Call 0208 200 2000

23" IPS LED, 1920x1080, 16:9, 220cd/m², 3ms, 16.7M, 2x2W RMS, VGA, HDMI, DP, 4x USB 3.0, 28W, 7.4kg
Crafted with advanced projected capacitive 10-point touch technology, the TM-23 not only delivers smooth and precise touch response, but also enables more creative and exciting interactive applications. Featuring Full HD resolution and an IPS panel, it ensures exceptional and accurate colour performance from all viewing angles. Its height adjustability and tilt flexibility ranging from –5 to 90 degrees guarantee ergonomic-friendliness and multi-user comfort, making it a value choice for public and interactive environments.
More Information
SKU TM-23
EAN 8130860029940
Specification
Audio
Built-in speaker(s)Yes
RMS rated power2 W
Performance
Built-in speaker(s)Yes
RMS rated power2 W
Built-in microphoneNo
Built-in cameraNo
AMD FreeSyncNo
NVIDIA G-SYNCNo
Operating system installedWindows 10
Operating hours (hours/days)24/7
Display
Display brightness (typical)250 cd/m²
Screen shapeFlat
Display number of colours16.78 million colours
Native aspect ratio16:9
Maximum refresh rate60 Hz
HD typeFull HD
Display technologyLCD
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.265 x 0.265 mm
Aspect ratio16:9
Viewable size diagonal58.4 cm
Digital horizontal frequency30 - 83 kHz
Digital vertical frequency55 - 76 Hz
Backlight typeLED
Display resolution1920 x 1080 pixels
Response time5 ms
Display diagonal58.4 cm (23")
Contrast ratio (typical)20000000:1
Surface hardness7H
Touchscreen typeTabletop
TouchscreenYes
Number of simultaneous touchpoints10
Panel typeIPS
Display diagonal (metric)58 cm
Touch technologyMulti-touch
Touchscreen technologyCapacitive
Management features
Plug and PlayYes
Multimedia
Number of speakers2
Built-in speaker(s)Yes
RMS rated power2 W
Built-in microphoneNo
Built-in cameraNo
Design
Market positioningBusiness
CertificationCE, FCC, LVD, BSMI, WEEE, RoHS, REACH, EAC, UKCA
Product colourBlack
Glass thickness2.4 mm
Camera
Built-in cameraNo
Ports & interfaces
Built-in USB hubYes
USB hub version3.2 Gen 1 (3.1 Gen 1)
Number of upstream ports4
Headphone outYes
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DisplayPorts quantity1
Audio input1
Headphone outputs1
Headphone connectivity3.5 mm
HDMIYes
HDMI version1.3
Technical details
Height (without stand)33.8 cm
Depth (without stand)5.72 cm
Width (without stand)56.1 cm
Cable lock slotYes
HDMIYes
Built-in microphoneNo
Product colourBlack
Sustainability certificatesCE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE
Power supply typeInternal
Weight (with stand)6.6 kg
Surface hardness7H
Touchscreen typeTabletop
TouchscreenYes
Number of simultaneous touchpoints10
Ergonomics
Wall mountableYes
VESA mountingYes
Cable lock slotYes
Panel mounting interface100 x 100 mm
Tilt angle range-5 - 90°
Height adjustment40 cm
Plug and PlayYes
Height adjustmentYes
Cable lock slot typeKensington
TiltableYes
Power
Power supply typeInternal
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (standby)0.7 W
Power consumption (typical)14 W
Power consumption (off)0.5 W
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 55 °C
Operating relative humidity (H-H)10 - 85%
Storage relative humidity (H-H)5 - 93%
Packaging content
Cables includedAC, Audio (3.5mm), HDMI, USB
Weight & dimensions
Height (without stand)33.8 cm
Depth (without stand)5.72 cm
Width (without stand)56.1 cm
Width (with stand)561 mm
Depth (with stand)238.5 mm
Height (with stand)400 mm
Weight (with stand)6.6 kg
Weight (without stand)4.3 kg
Package width632 mm
Package depth448 mm
Package height186 mm
Package weight8.7 kg
Packaging data
Package width632 mm
Package depth448 mm
Package height186 mm
Package weight8.7 kg
Cables includedAC, Audio (3.5mm), HDMI, USB
Sustainability
Sustainability certificatesCE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE
Thin Client
Operating system installedWindows 10
Logistics data
Harmonized System (HS) code85285210
Other features
Height (without stand)33.8 cm
Depth (without stand)5.72 cm
Width (without stand)56.1 cm
HDMIYes
Surface hardness7H
Power supply typeInternal
Touchscreen typeTabletop
TouchscreenYes
Number of simultaneous touchpoints10
Energy efficiency class (old)B
Certificates
CertificationCE, FCC, LVD, BSMI, WEEE, RoHS, REACH, EAC, UKCA
Manufacturer AG Neovo
PDF Url https://objects.icecat.biz/objects/m
In Stock Y
