£26.67 £22.23

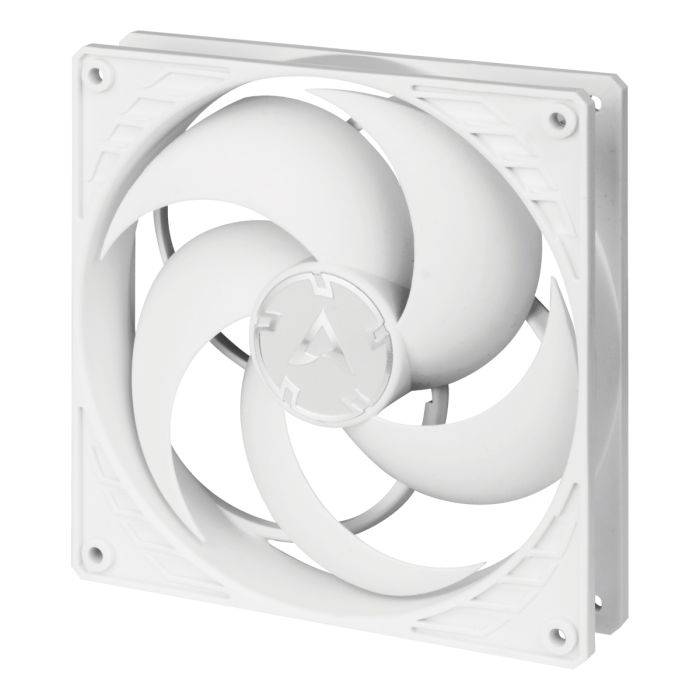

ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM

£26.68 £22.23
In stock
SKU

ACFAN00222A

Need help ordering? Call 0208 200 2000

140 mm, 200 - 1700 RPM, PWM, 72.8 CFM, 123.76 m3/h, 12 V DC, 4-pin, 194 g, White
The P14 PWM features completely redesigned fan blades and is optimised for high static pressure. Thanks to this, it is especially effective when used on heatsinks and in situations with higher air resistance.The wide RPM range from 200 to 1700 RPM can be regulated steplessly via PWM.The newly developed motor with a low coil temperature significantly increases the life span of the fan. Therefore we have extended the warranty to 10 years.
More Information
SKU ACFAN00222A
EAN 4895213703093
Specification
Performance
Suitable locationComputer case
Fan connector4-pin
Pulse-width modulation (PWM) supportYes
Rotational speed (min)200 RPM
Rotational speed (max)1700 RPM
Noise level0.3 sone
Bearing typeFluid Dynamic Bearing (FDB)
TypeFan
Fan diameter14 cm
Supported processor socketsNot supported
Compatible processor seriesNot supported
Maximum airflow72.8 cfm
Maximum air pressure2.4 mmH2O
Airflow123.76 m³/h
Number of fans1 fan(s)
Quantity per pack1 pc(s)
Number of fan blades5
Design
Fan connector4-pin
Number of fans1 fan(s)
Product colourWhite
Cable length0.4 m
Number of fan blades5
Technical details
TypeFan
Fan diameter14 cm
Supported processor socketsNot supported
Compatible processor seriesNot supported
Maximum airflow72.8 cfm
Maximum air pressure2.4 mmH2O
Airflow123.76 m³/h
Number of fans1 fan(s)
Cable length0.4 m
Fan connector4-pin
Ports & interfaces
Fan connector4-pin
Power
Starting voltage3.9 V
Voltage12 V
Rated current0.12 A
Power consumption (typical)1.44 W
Colour
Product colourWhite
Weight & dimensions
Package depth143 mm
Package width143 mm
Package height29 mm
Width140 mm
Package weight234 g
Depth140 mm
Height27 mm
Weight194 g
Cable length0.4 m
Packaging data
Package depth143 mm
Package width143 mm
Package height29 mm
Package weight234 g
Package typeBox
Packaging content
Screws includedYes
Number of screws4
Package typeBox
Other features
Harmonized System (HS) code84733080
