£3267.04 £2722.53

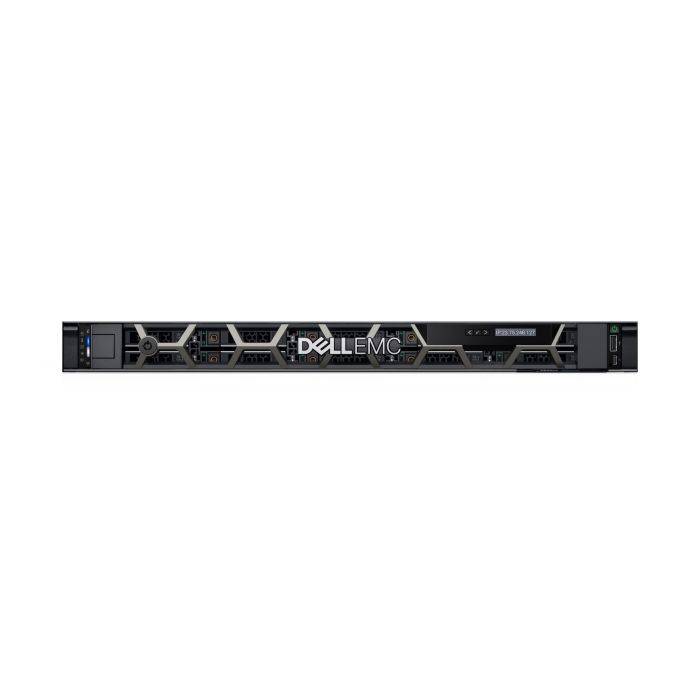

DELL PowerEdge R650xs server 480 GB Rack (1U) Intel® Xeon® Gold 2.1 GHz 32 GB DDR4-SDRAM 800 W

£3,267.05 £2,722.54
Out of stock
SKU

V0GGG

Intel Xeon Gold 5318Y (36MB Cache, 2.1GHz), 32GB DDR4-SDRAM (2933MHz), 480GB SSD, LAN (Broadcom 5720), PERC H755, iDRAC9, Enterprise 15G, 800W, No OS


1U server that’s purpose-built for scale-out solutions
The Dell EMC PowerEdge R650xs is designed to meet a specific set of requirements for medium-duty workloads with enterprise-class performance and capabilities.
More Information
SKU V0GGG
EAN 5397184745571
Specification
Processor
Processor generation3rd Generation Intel® Xeon® Scalable
Thermal Design Power (TDP)165 W
Processor threads48
Processor cache36 MB
Processor frequency2.1 GHz
Processor boost frequency3.4 GHz
Number of processors installed1
Processor model5318Y
System bus rate11.2 GT/s
Processor cores24
Processor manufacturerIntel
Processor familyIntel® Xeon® Gold
Memory
Internal memory32 GB
Memory layout (slots x size)1 x 32 GB
Memory slots16x DIMM
Memory clock speed2933 MHz
Internal memory typeDDR4-SDRAM
Memory data transfer rate3200 MT/s
Buffered memory typeRegistered (buffered)
Memory ranking2
Storage
Supported RAID controllersPERC H755
Number of SSDs supported8
Total storage capacity480 GB
SSD interfaceSATA III
SSD capacity480 GB
RAID supportNo
Optical drive typeNo
Number of SSDs installed1
Hot-Plug supportYes
SSD size2.5"
Drive writes per day (DWPD)1
Supported SSD sizes2.5"
Network
LAN controllerBroadcom 5720
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Cabling technology10/100/1000Base-T(X)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
VGA (D-Sub) ports quantity2
USB 2.0 ports quantity2
Ethernet LAN (RJ-45) ports2
Expansion slots
PCI Express x16 slots2
Optical drive
Optical drive typeNo
Design
Optical drive typeNo
Chassis typeRack (1U)
Product colourBlack
BezelYes
Performance
Compatible operating systemsCanonical® Ubuntu® Server LTS Citrix® Hypervisor® Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi®
Remote administrationiDRAC9, Enterprise 15G
Operating system installedNo
Harmonized System (HS) code84714100
Software
Compatible operating systemsCanonical® Ubuntu® Server LTS Citrix® Hypervisor® Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi®
Operating system installedNo
Power
Number of main power supplies1
Number of redundant power supplies supported2
Redundant power supply (RPS) supportYes
Power supply800 W
Power cable length2 m
Power cable connector 1C13 coupler
Power cable connector 2C14 coupler
Power cable current10 A
Operational conditions
Storage temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)8 - 80%
Storage relative humidity (H-H)5 - 95%
Operating temperature (T-T)10 - 35 °C
Operating altitude0 - 3048 m
Non-operating altitude0 - 12000 m
Management features
Remote administrationiDRAC9, Enterprise 15G
Technical details
Hot-Plug supportYes
Ethernet interface typeGigabit Ethernet
Chassis typeRack (1U)
Weight & dimensions
Width482 mm
Height42.8 mm
Other features
Data transfer rate6 Gbit/s
Bytes per sector512
Manufacturer DELL
PDF Url https://objects.icecat.biz/objects/
In Stock N
