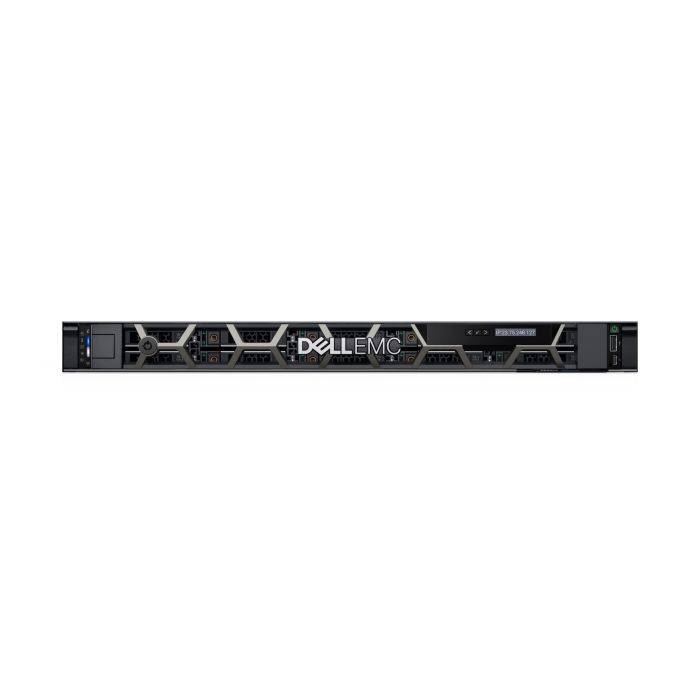

DELL PowerEdge R650xs server Rack (1U) Intel Xeon Silver 2.1 GHz 32 GB DDR4-SDRAM 800 W

Name: DELL PowerEdge R650xs server Rack (1U) Intel Xeon Silver 2.1 GHz 32 GB DDR4-SDRAM 800 W
Brand: DELL
SKU: PHXVP
Price: 3394.72 GBP
Availability: OutOfStock
Rating: 4.86 (1228 reviews)

£3,394.72 £2,828.93

Out of stock

SKU

PHXVP

Intel Xeon Silver 4310 (18MB Cache, 2.1GHz), 32GB DDR4-SDRAM (2666MHz), 480GB SSD, LAN (Broadcom 5720), PERC H755, iDRAC9, Enterprise 15G, 800W, No OS

Product Details

1U server that’s purpose-built for scale-out solutions
The Dell EMC PowerEdge R650xs is designed to meet a specific set of requirements for medium-duty workloads with enterprise-class performance and capabilities.

Technical Specification

More Information

SKU

PHXVP

EAN

5397184745557

Specification

Processor
Processor generation	3rd Generation Intel® Xeon® Scalable
Processor cache	18 MB
Processor frequency	2.1 GHz
Processor boost frequency	3.3 GHz
Number of processors installed	1
Processor model	4310
Processor manufacturer	Intel
Processor family	Intel Xeon Silver
Memory
Internal memory	32 GB
Memory layout (slots x size)	1 x 32 GB
Memory slots	16x DIMM
Memory clock speed	2666 MHz
Internal memory type	DDR4-SDRAM
Memory data transfer rate	3200 MT/s
Buffered memory type	Registered (buffered)
Memory ranking	2
Storage
Supported RAID controllers	PERC H755
Number of SSDs supported	8
SSD interface	SATA III
SSD capacity	480 GB
Optical drive type	No
Number of SSDs installed	1
Hot-Plug support	Yes
SSD size	2.5"
Drive writes per day (DWPD)	1
Supported SSD sizes	2.5"
Network
LAN controller	Broadcom 5720
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
VGA (D-Sub) ports quantity	2
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	2
Optical drive
Optical drive type	No
Design
Optical drive type	No
Chassis type	Rack (1U)
Product colour	Black
Bezel	Yes
Performance
Compatible operating systems	Canonical® Ubuntu® Server LTS Citrix® Hypervisor® Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi®
Remote administration	iDRAC9, Enterprise 15G
Operating system installed	No
Harmonized System (HS) code	84714100
Software
Compatible operating systems	Canonical® Ubuntu® Server LTS Citrix® Hypervisor® Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi®
Operating system installed	No
Power
Number of main power supplies	1
Number of redundant power supplies supported	2
Redundant power supply (RPS) support	Yes
Power supply	800 W
Power cable length	2 m
Power cable connector 1	C13 coupler
Power cable connector 2	C14 coupler
Power cable current	10 A
Operational conditions
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	8 - 80%
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	10 - 35 °C
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Management features
Remote administration	iDRAC9, Enterprise 15G
Technical details
Hot-Plug support	Yes
Ethernet interface type	Gigabit Ethernet
Chassis type	Rack (1U)
Weight & dimensions
Width	482 mm
Height	42.8 mm
Other features
Data transfer rate	6 Gbit/s
Bytes per sector	512

Manufacturer

DELL
