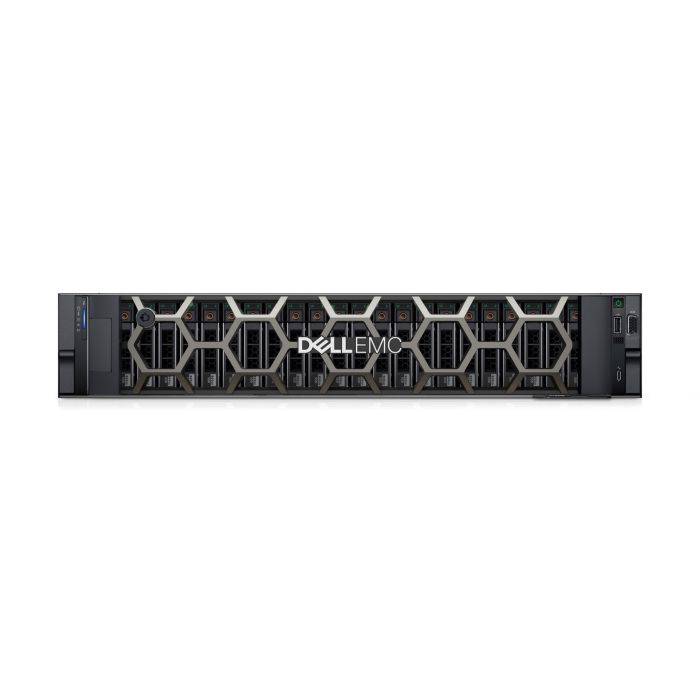

DELL PowerEdge R750XS server 480 GB Rack (2U) Intel Xeon Silver 2.4 GHz 32 GB DDR4-SDRAM 800 W

Name: DELL PowerEdge R750XS server 480 GB Rack (2U) Intel Xeon Silver 2.4 GHz 32 GB DDR4-SDRAM 800 W
Brand: DELL
SKU: C9X54
Price: 3820.04 GBP
Availability: OutOfStock
Rating: 4.86 (1228 reviews)

£3,820.04 £3,183.37

Out of stock

SKU

C9X54

Intel Xeon Silver 4314 (24MB Cache, 2.4GHz), 32GB DDR4-SDRAM (2933MHz), 480GB SSD, LAN (Broadcom 57412), PERC H755, iDRAC9, Enterprise 15G, 800W, No OS

Product Details

Purpose-built 2U for growing scale-out solutions
The Dell EMC PowerEdge R750xs is purposefully designed with distinctive, customer-defined requirements to deliver enterprise performance for scale-out environments.

Technical Specification

More Information

SKU

C9X54

EAN

5397184749104

Specification

Processor
Processor generation	3rd Generation Intel® Xeon® Scalable
Maximum internal memory supported by processor	512 GB
Processor cache	24 MB
Processor frequency	2.4 GHz
Processor boost frequency	3.4 GHz
Number of processors installed	1
Processor model	4314
Processor manufacturer	Intel
Processor family	Intel Xeon Silver
Memory
Internal memory	32 GB
Memory layout (slots x size)	1 x 32 GB
Memory slots	16x DIMM
Memory clock speed	2933 MHz
Maximum internal memory	1000 GB
Internal memory type	DDR4-SDRAM
Memory data transfer rate	3200 MT/s
Memory ranking	2
Storage
Supported RAID controllers	PERC H755
Total storage capacity	480 GB
SSD interface	SATA III
SSD capacity	480 GB
RAID support	Yes
Optical drive type	No
Number of SSDs installed	1
Hot-Plug support	Yes
SSD size	2.5"
Storage drive adapter included	Yes
Storage drive adapter type	2.5" - 3.5"
Network
LAN controller	Broadcom 57412
Ethernet LAN	Yes
Ethernet interface type	10 Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	2
Optical drive
Optical drive type	No
Design
Optical drive type	No
Chassis type	Rack (2U)
Product colour	Black
Bezel	Yes
Performance
Compatible operating systems	Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Remote administration	iDRAC9, Enterprise 15G
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Operating system installed	No
Harmonized System (HS) code	84714100
Software
Compatible operating systems	Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Operating system installed	No
Power
Number of main power supplies	1
Number of redundant power supplies supported	2
Redundant power supply (RPS) support	Yes
Power supply	800 W
Power cable length	2 m
Power cable connector 1	C13 coupler
Power cable connector 2	C14 coupler
Power cable current	10 A
Operational conditions
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	10 - 35 °C
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Management features
Remote administration	iDRAC9, Enterprise 15G
Technical details
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Hot-Plug support	Yes
Ethernet interface type	10 Gigabit Ethernet
Chassis type	Rack (2U)
Drive bays	8
Weight & dimensions
Height	86.8 mm
Other features
Drive bays	8

Manufacturer

DELL
