£605.66 £504.72

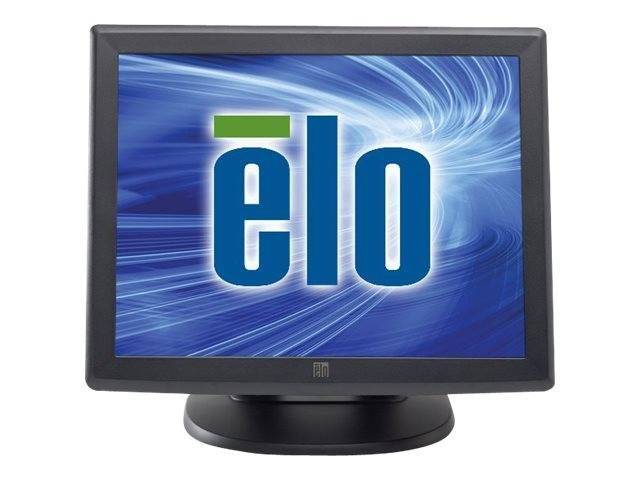

Elo Touch Solutions 1515L E399324 38.1 cm 15IN 1024 x 768 pixels LCD Touchscreen Grey

£605.66 £504.72
Out of stock
SKU

E399324

15.0" TFT LCD, 1024 x 768, 4:3, 225 nits, CR 500:1, VGA, USB, Serial, IntelliTouch, 30W, Dark Gray
The 1515L touchmonitors are designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. Aimed at the fast-changing retail POS and hospitality markets, they provide reliable, durable operation and come from the worldwide leader in touchmonitors, Elo TouchSystems. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1515L features a choice of touchscreen technologies: AccuTouch five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; IntelliTouch pure glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications; Acoustic Pulse Recognition for a pure-glass surface that recognizes sound from both hard and soft stylus touches; projected capacitive for a durable, zero-bezel, glass-to-edge surfacewith multi-touch.
More Information
SKU E399324
EAN 7411493056178
Specification
Ports & interfaces
USB 2.0 ports quantity1
DVI portNo
VGA (D-Sub) ports quantity1
RS-232 ports1
Performance
Mean time between failures (MTBF)50000 h
AMD FreeSyncNo
NVIDIA G-SYNCNo
Display
Screen shapeFlat
Display number of colours16.78 million colours
Native aspect ratio4:3
Display technologyLCD
Viewing angle, horizontal140°
Viewing angle, vertical125°
Horizontal scan range31.5 - 60.2 kHz
Vertical scan range56.3 - 75 Hz
Aspect ratio4:3
Display resolution1024 x 768 pixels
Response time11.7 ms
Display diagonal38.1 cm (15")
Contrast ratio (typical)500:1
TouchscreenYes
Display brightness225 cd/m²
Management features
On Screen Display (OSD)Yes
Design
CertificationUL, cUL,FCC, CE, Semko/ Demko, VCCI, ICES, C TICK, MPRII, S-Mark, BSMI, CCC, KC, China RoHS
Product colourGrey
Mean time between failures (MTBF)50000 h
Technical details
Mean time between failures (MTBF)50000 h
Maximum analog resolution1024 x 768 pixels
Display viewable area (HxV)304 x 228 mm
Product colourGrey
USB 2.0 ports quantity1
Weight (with stand)4.8 kg
TouchscreenYes
Ergonomics
Wall mountableYes
Panel mounting interface75 x 75 mm
On Screen Display (OSD)Yes
Power
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)30 W
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%
Packaging content
Camera includedNo
Weight & dimensions
Width (with stand)350 mm
Depth (with stand)175 mm
Height (with stand)310 mm
Weight (with stand)4.8 kg
Weight (without stand)3.3 kg
Package weight7 kg
Packaging data
Package weight7 kg
Logistics data
Harmonized System (HS) code85285210
Certificates
CertificationUL, cUL,FCC, CE, Semko/ Demko, VCCI, ICES, C TICK, MPRII, S-Mark, BSMI, CCC, KC, China RoHS
Other features
USB 2.0 ports quantity1
Dimensions (W x D x H) with stand350 x 175 x 310 mm
Package dimensions (WxDxH)445 x 380 x 260 mm
Native resolution1024 x 768 pixels
Mean time between failures (MTBF)50000 h
Maximum analog resolution1024 x 768 pixels
Display viewable area (HxV)304 x 228 mm
TouchscreenYes
HD-ReadyNo
Full HDNo
Manufacturer Elo Touch Solutions
