£625.54 £521.29

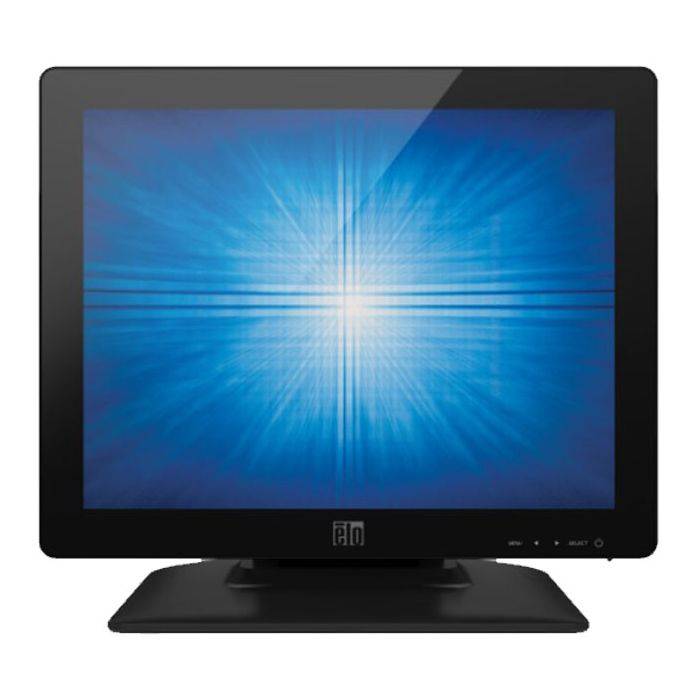

Elo Touch Solutions 1523L E336518 38.1 cm 15IN 1024 x 768 pixels Touchscreen White

£625.55 £521.29
Out of stock
SKU

E336518

1523L, Desktop Touchmonitor, iTouch Plus, Multi-touch, 15", 1024 x 768, 160/140, 700:1, Mini D-Sub, DVI-D, IntelliTouch Pro PCAP
The Elo Touch Solutions 1523L 15-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. Retail peripheral accessories include an encryptable MSR, NFC/RFID for contactless payments, webcam, and rear-facing display bracket. The edge to edge flat glass style of the 1523L brings a sleek, modern feel to any application. It is available in two touchscreen technologies, IntelliTouch Zero-Bezel surface acoustic wave, and IntelliTouch Pro projected capacitive with anti-glare surface coating, supporting 10-touch interaction right out of the box. Both touch technologies provide a stable "drift-free" operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images.
More Information
SKU E336518
EAN 0834619007347
Specification
Ports & interfaces
USB 2.0 ports quantity2
DVI portYes
VGA (D-Sub) ports quantity1
DVI-D ports quantity1
Audio
Built-in speaker(s)Yes
Performance
Built-in speaker(s)Yes
Mean time between failures (MTBF)50000 h
AMD FreeSyncNo
NVIDIA G-SYNCNo
Display
Screen shapeFlat
Native aspect ratio4:3
Viewing angle, horizontal160°
Viewing angle, vertical140°
Aspect ratio4:3
Supported graphics resolutions720 x 400, 1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Display resolution1024 x 768 pixels
Response time25 ms
Display diagonal38.1 cm (15")
Contrast ratio (typical)700:1
TouchscreenYes
Touchscreen technologySurface acoustic wave
Display brightness215 cd/m²
Multimedia
Built-in speaker(s)Yes
Design
Product colourWhite
Mean time between failures (MTBF)50000 h
Technical details
Mean time between failures (MTBF)50000 h
Display viewable area (HxV)304 x 228 mm
Product colourWhite
USB 2.0 ports quantity2
Weight (with stand)4.44 kg
TouchscreenYes
Ergonomics
Wall mountableYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 95%
Weight & dimensions
Width (with stand)358 mm
Depth (with stand)318 mm
Height (with stand)199 mm
Weight (with stand)4.44 kg
Package weight7 kg
Packaging data
Package weight7 kg
Logistics data
Harmonized System (HS) code85285210
Other features
USB 2.0 ports quantity2
Dimensions (W x D x H) with stand358 x 318 x 199 mm
Mean time between failures (MTBF)50000 h
Display viewable area (HxV)304 x 228 mm
TouchscreenYes
Manufacturer Elo Touch Solutions
In Stock N
