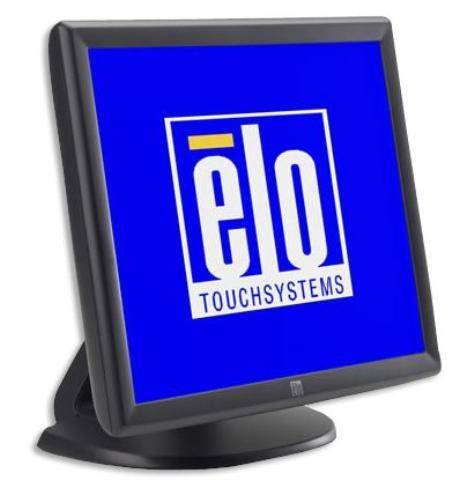

Elo 1915L Touch 19TFT Surface Acoustic Wave 1280x1024 4:3 - E266835

Name: Elo 1915L Touch 19TFT Surface Acoustic Wave 1280x1024 4:3 - E266835
Brand: Elo Touch Solutions
SKU: E266835
Price: 787.68 GBP
Availability: OutOfStock
Rating: 4.86 (1228 reviews)

£787.68 £656.40

Out of stock

SKU

E266835

19.0" TFT LCD, 1280 x 1024, 5:4, 270 nits, 5ms, CR 1000:1, VGA, Serial/USB, IntelliTouch, 50W

Product Details

The 1915L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchmonitor.

Technical Specification

More Information

SKU

E266835

EAN

7411493015656

Specification

Ports & interfaces
USB 2.0 ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
RS-232 ports	1
Performance
Mean time between failures (MTBF)	50000 h
AMD FreeSync	No
NVIDIA G-SYNC	No
Display
Screen shape	Flat
Display number of colours	16.78 million colours
Native aspect ratio	5:4
Display technology	LCD
Viewing angle, horizontal	160°
Viewing angle, vertical	155°
Horizontal scan range	31.5 - 80 kHz
Vertical scan range	56.3 - 75 Hz
Aspect ratio	5:4
Display resolution	1280 x 1024 pixels
Response time	5 ms
Display diagonal	48.3 cm (19")
Contrast ratio (typical)	1000:1
Touchscreen	Yes
Display brightness	225 cd/m²
Management features
On Screen Display (OSD)	Yes
Design
Certification	UL/cUL, TÜV-GS, CE, FCC/IC/VCCI, C-Tick Class B
Product colour	Grey
Mean time between failures (MTBF)	50000 h
Technical details
Mean time between failures (MTBF)	50000 h
Display viewable area (HxV)	376.3 x 301.1 mm
Product colour	Grey
Power supply type	AC
USB 2.0 ports quantity	1
Touchscreen	Yes
Ergonomics
Wall mountable	Yes
Panel mounting interface	100 x 100 mm
On Screen Display (OSD)	Yes
Power
Power supply type	AC
Power consumption (typical)	50 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Packaging content
Camera included	No
Weight & dimensions
Width (with stand)	429 mm
Depth (with stand)	207 mm
Height (with stand)	379 mm
Weight (without stand)	7.9 kg
Package weight	11.7 kg
Packaging data
Package weight	11.7 kg
Logistics data
Harmonized System (HS) code	85285210
Certificates
Certification	UL/cUL, TÜV-GS, CE, FCC/IC/VCCI, C-Tick Class B
Other features
Power supply type	AC
USB 2.0 ports quantity	1
Dimensions (W x D x H) with stand	429 x 207 x 379 mm
Package dimensions (WxDxH)	540 x 495 x 285 mm
Power requirements	85 - 265 VAC, 47 – 63 Hz
Native resolution	1280 x 1024 pixels
Mean time between failures (MTBF)	50000 h
Display viewable area (HxV)	376.3 x 301.1 mm
Touchscreen	Yes
HD-Ready	No
Full HD	No
