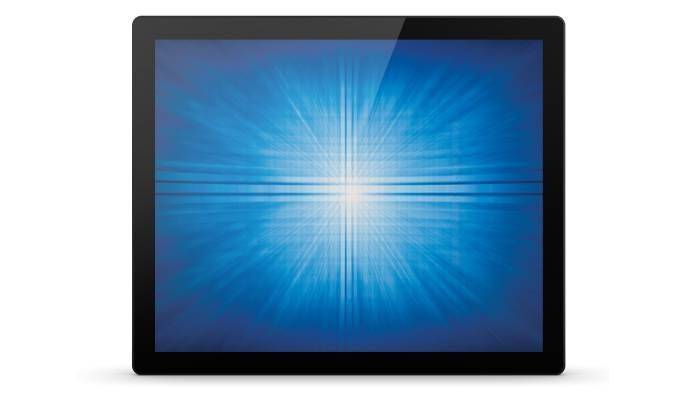

Elo Touch Solution 1990L 19" 1280 x 1024pixels Multi-touch Tabletop Black touch screen monitor E330817

£428.92 £357.43
In stock
SKU

E330817

Need help ordering? Call 0208 200 2000

1990L TouchPro PCAP, 19", 5 ms, 225 cd/m², 1280 x 1024, TFT-LCD, 1000 : 1, 5 : 4, VGA, DisplayPort, Black
The Elo 1990L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1990L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

Touch ready.
Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.

Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing - LED backlighting allows for state-of-the-art slim design while reducing power consumption - 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities - Display Port and VGA video interfaces
More Information
SKU E330817
EAN 0815335025990
Specification
Performance
Mean time between failures (MTBF)50000 h
Built-in microphoneNo
Built-in cameraNo
AMD FreeSyncNo
NVIDIA G-SYNCNo
Display
Screen shapeFlat
Display number of colours16.78 million colours
Display technologyLED
Viewing angle, horizontal170°
Viewing angle, vertical160°
Horizontal scan range30 - 82 kHz
Vertical scan range50 - 75 Hz
Aspect ratio5:4
Supported graphics resolutions640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA)
Display resolution1280 x 1024 pixels
Response time5 ms
Display diagonal48.3 cm (19")
Contrast ratio (typical)1000:1
Touchscreen typeTabletop
TouchscreenYes
Touch technologyMulti-touch
Touchscreen technologyProjected capacitive system
Display brightness225 cd/m²
Management features
Number of OSD languages8
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Multimedia
Built-in microphoneNo
Built-in cameraNo
Design
Product colourBlack
Mean time between failures (MTBF)50000 h
Camera
Built-in cameraNo
Ports & interfaces
VGA (D-Sub) ports quantity1
DisplayPorts quantity1
Technical details
Height (without stand)34.3 cm
Depth (without stand)5 cm
Width (without stand)41.5 cm
Mean time between failures (MTBF)50000 h
Display viewable area (HxV)376.32 x 301.06 mm
Built-in microphoneNo
Product colourBlack
Power supply typeDC
Touchscreen typeTabletop
TouchscreenYes
Ergonomics
Wall mountableYes
VESA mountingYes
Panel mounting interface100 x 100 mm
Number of OSD languages8
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Power
Power supply typeDC
AC input voltage230 V
AC input frequency50 Hz
Power consumption (standby)1.5 W
Power consumption (typical)22 W
Power consumption (off)0.5 W
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 95%
Operating altitude0 - 3.048 m
Packaging content
Cables includedHDMI, USB, VGA
Weight & dimensions
Height (without stand)34.3 cm
Depth (without stand)5 cm
Width (without stand)41.5 cm
Weight (without stand)4.6 kg
Package width526 mm
Package depth450 mm
Package height190 mm
Package weight7 kg
Packaging data
Package width526 mm
Package depth450 mm
Package height190 mm
Package weight7 kg
Cables includedHDMI, USB, VGA
Logistics data
Harmonized System (HS) code85285210
Other features
Height (without stand)34.3 cm
Depth (without stand)5 cm
Width (without stand)41.5 cm
Power supply typeDC
Mean time between failures (MTBF)50000 h
Display viewable area (HxV)376.32 x 301.06 mm
Touchscreen typeTabletop
TouchscreenYes
Manufacturer Elo Touch Solutions
