£548.91 £457.43

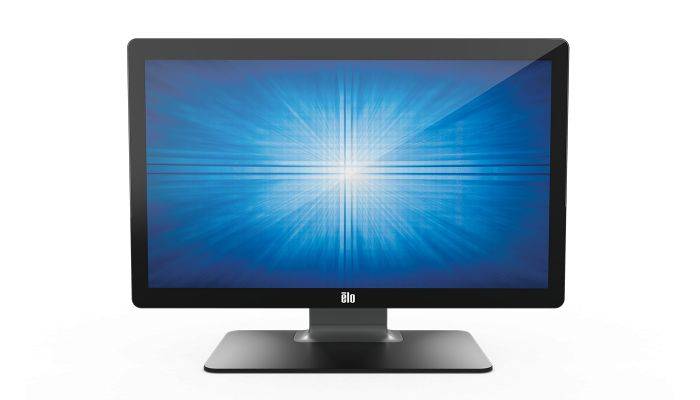

Elo Touch Solutions 2402L E351806 60.5 cm 23.8IN 1920 x 1080 pixels LCD Touchscreen Multi-user

£548.92 £457.43
In stock
SKU

E351806

Need help ordering? Call 0208 200 2000

23.8" TouchPro PCAP 10 Touch, FHD 1920 x 1080 px, 16:9, 1000:1, 240 cd/m², 2 x 2 W, VGA, HDMI, USB
The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.

Brilliant Displays from 19 to 27-inches
The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.

Well-Suited for...
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

Privacy Matters
Optional privacy screens can help provide a physical safeguard for private information or sensitive data from the view of others. Whether you are the employee or the customer, privacy matters.

One for You.
One for Your Customers.Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.

Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.
More Information
SKU E351806
EAN 0815335026416
Specification
Ports & interfaces
USB 2.0 ports quantity1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
Headphone outputs1
HDMIYes
Micro-USB ports quantity4
Audio
Built-in speaker(s)Yes
RMS rated power4 W
Performance
Built-in speaker(s)Yes
RMS rated power4 W
Built-in cameraNo
AMD FreeSyncNo
NVIDIA G-SYNCNo
Display
Screen shapeFlat
Display number of colours16.78 million colours
Maximum refresh rate60 Hz
Display technologyLCD
Viewing angle, horizontal178°
Viewing angle, vertical178°
Horizontal scan range30 - 82 kHz
Vertical scan range50 - 75 Hz
Aspect ratio16:9
Display resolution1920 x 1080 pixels
Response time15 ms
Display diagonal60.5 cm (23.8")
Contrast ratio (typical)1000:1
Touchscreen typeMulti-user
TouchscreenYes
Touch technologyMulti-touch
Touchscreen technologyProjected capacitive system
LED backlightYes
Display brightness240 cd/m²
Management features
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian
Multimedia
Number of speakers2
Built-in speaker(s)Yes
RMS rated power4 W
Built-in cameraNo
Design
Product colourBlack
International Protection (IP) codeIPX1
Camera
Built-in cameraNo
Technical details
HDMIYes
Display viewable area (HxV)527.04 x 296.46 mm
Product colourBlack
Power supply typeAC/DC
USB 2.0 ports quantity1
Weight (with stand)8.7 kg
Touchscreen typeMulti-user
TouchscreenYes
Ergonomics
VESA mountingYes
Panel mounting interface100 x 100 mm
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian
Power
Power supply typeAC/DC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (standby)0.33 W
Power consumption (typical)25.5 W
Power consumption (off)0.27 W
Voltage tolerance5%
AC adapter output voltage12 V
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 95%
Packaging content
Quick start guideYes
Cables includedAC, Audio (3.5mm), HDMI, USB, VGA
Weight & dimensions
Width (with stand)574.6 mm
Depth (with stand)233 mm
Height (with stand)432.9 mm
Weight (with stand)8.7 kg
Weight (without stand)5.42 kg
Package width680 mm
Package depth318 mm
Package height526 mm
Package weight12 kg
Packaging data
Package width680 mm
Package depth318 mm
Package height526 mm
Package weight12 kg
Quick start guideYes
Cables includedAC, Audio (3.5mm), HDMI, USB, VGA
Logistics data
Harmonized System (HS) code85285210
Other features
Quick start guideYes
HDMIYes
Power supply typeAC/DC
USB 2.0 ports quantity1
Dimensions (W x D x H) with stand574.6 x 233 x 432.9 mm
Display viewable area (HxV)527.04 x 296.46 mm
Touchscreen typeMulti-user
TouchscreenYes
Manufacturer Elo Touch Solutions
In Stock Y
