£472.26 £393.55

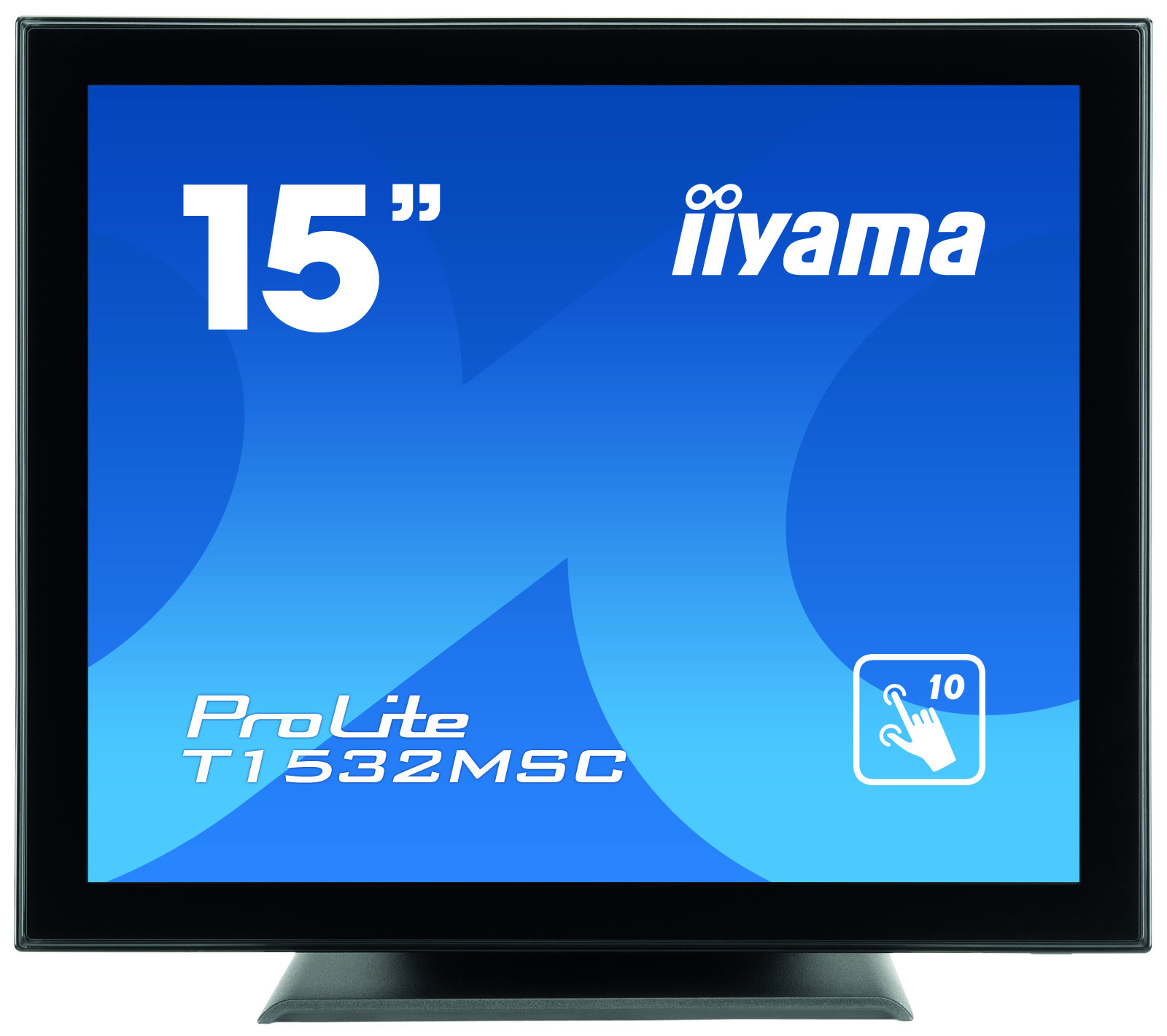

iiyama ProLite T1532MSC-B5AG 38.1 cm 15IN 1024 x 768 pixels LED Touchscreen Black

£472.26 £393.55
Out of stock
SKU

T1532MSC-B5AG

ProLite T1532MSC-B5AG, 15", 1024x768, 4:3, TN LED, 8 ms, USB, VGA, HDMI, DP, RMS 2x 1 W, 351x306.5x202 mm
The ProLite T1532MSC 15" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The anti-glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the TouchScreen with an adjustable stand offering full 90 degree positioning angles. Menu buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the TouchScreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours. TOUCH TECHNOLOGY - CAPACITIVE This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen. AG COATING The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.

SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
More Information
SKU T1532MSC-B5AG
EAN 4948570115990
Specification
Display
HDCPYes
Screen shapeFlat
Display number of colours16.2 million colours
Native aspect ratio4:3
Display technologyLED
Viewing angle, horizontal170°
Viewing angle, vertical160°
Pixel pitch0.297 x 0.297 mm
Horizontal scan range31.4 - 60 kHz
Vertical scan range56 - 75 Hz
Aspect ratio4:3
Separate H/V syncYes
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA)
Display resolution1024 x 768 pixels
Response time8 ms
Display diagonal38.1 cm (15")
Contrast ratio (typical)700:1
TouchscreenYes
Number of simultaneous touchpoints10
Display diagonal (metric)38 cm
Touchscreen technologyProjected capacitive system
Display brightness315 cd/m²
Audio
Built-in speaker(s)Yes
RMS rated power2 W
Performance
Built-in speaker(s)Yes
RMS rated power2 W
AMD FreeSyncNo
NVIDIA G-SYNCNo
Windows operating systems supportedYes
Linux operating systems supportedYes
OmniTapps Multitouch compatibilityNo
Management features
Number of OSD languages7
On Screen Display (OSD) languagesGerman, English, Spanish, French, Italian, Japanese
Plug and PlayYes
Multimedia
Built-in speaker(s)Yes
RMS rated power2 W
Design
CertificationCB, CE, TÜV, CU, cULus, VCCI
Product colourBlack
International Protection (IP) codeIP54
Ports & interfaces
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DisplayPorts quantity1
HDCPYes
Audio input3.5mm
HDMIYes
USB Touch ports quantity1
USB Touch portYes
Technical details
Height (without stand)30.6 cm
Depth (without stand)20.2 cm
Width (without stand)35.1 cm
Cable lock slotYes
HDMIYes
Display viewable area (HxV)304.1 x 228.1 mm
Product colourBlack
Power supply typeAC
TouchscreenYes
Number of simultaneous touchpoints10
Software
Windows operating systems supportedYes
Linux operating systems supportedYes
Ergonomics
Wall mountableYes
VESA mountingYes
Cable lock slotYes
Panel mounting interface100 x 100 mm
Tilt angle range-5 - 90°
Number of OSD languages7
On Screen Display (OSD) languagesGerman, English, Spanish, French, Italian, Japanese
Plug and PlayYes
Cable lock slot typeKensington
TiltableYes
Power
Power supply typeAC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (standby)2 W
Power consumption (typical)16 W
Energy efficiency scaleA to G
Energy efficiency class (SDR)E
Energy consumption (SDR) per 1000 hours10 kWh
Power managementYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%
Packaging content
Quick start guideYes
Cables includedAC, Audio (3.5mm), DisplayPort, HDMI, USB
Weight & dimensions
Height (without stand)30.6 cm
Depth (without stand)20.2 cm
Width (without stand)35.1 cm
Weight (without stand)4.5 kg
Packaging data
Quick start guideYes
Cables includedAC, Audio (3.5mm), DisplayPort, HDMI, USB
Logistics data
Harmonized System (HS) code85285210
Other features
Height (without stand)30.6 cm
Depth (without stand)20.2 cm
Width (without stand)35.1 cm
Quick start guideYes
HDMIYes
Energy efficiency scaleA to G
Power supply typeAC
Display viewable area (HxV)304.1 x 228.1 mm
Power managementYes
TouchscreenYes
Number of simultaneous touchpoints10
Certificates
CertificationCB, CE, TÜV, CU, cULus, VCCI
Manufacturer iiyama
PDF Url https://objects.icecat.biz/objects/mm
