£378.43 £315.36

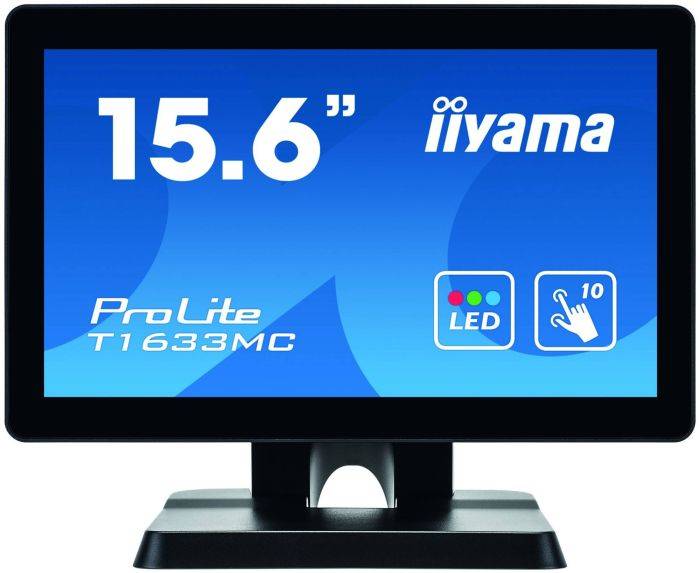

iiyama ProLite T1633MC-B1 touch screen monitor 39.6 cm (15.6") 1366 x 768 pixels Black Multi-touch Multi-user

£378.43 £315.36
In stock
SKU

T1633MC-B1

Need help ordering? Call 0208 200 2000

T1633MC-B1, 15.6", 1366x768, 16:9, TN LED, 8 ms, USB 2.0, VGA, HDMI, DP, HDCP, 389x312.5x254 mm
The 15.6” LED-backlit ProLite T1633MC-B1 uses Projective Capacitive Multi-Touch Technology and is built into an eye catching bezel with edge-to-edge glass. The screen features a 1366 x 768 resolution, triple inputs (HDMI, DisplayPort, VGA) and USB Hub, comes with a rugged bezel and IP54 rated front making it suitable for demanding environments.The ProLite T1633MC-B1 is the ideal solution for in-store retail and kiosk integration. TOUCH TECHNOLOGY - CAPACITIVE This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen. SCRATCH RESISTANCE Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched. IP54 The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water. LED-BACKLIT A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.
More Information
SKU T1633MC-B1
EAN 4948570116393
Specification
Display
HDCPYes
Screen shapeFlat
Display number of colours16.78 million colours
Native aspect ratio16:9
Maximum refresh rate60 Hz
Display technologyLED
Viewing angle, horizontal160°
Viewing angle, vertical160°
Pixel pitch0.252 x 0.252 mm
Horizontal scan range31.4 - 60.3 kHz
Vertical scan range56 - 75 Hz
Aspect ratio16:9
Separate H/V syncYes
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 768 (WXGA), 1366 х 768
Display resolution1366 x 768 pixels
Response time8 ms
Display diagonal39.6 cm (15.6")
Contrast ratio (typical)500:1
Touchscreen typeMulti-user
TouchscreenYes
Display diagonal (metric)39.5 cm
Touch technologyMulti-touch
Touchscreen technologyProjected capacitive system
Display brightness255 cd/m²
Ports & interfaces
USB 2.0 ports quantity2
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DisplayPorts quantity1
HDCPYes
HDMIYes
USB Touch portYes
Performance
Built-in microphoneNo
Built-in cameraNo
AMD FreeSyncNo
NVIDIA G-SYNCNo
OmniTapps Multitouch compatibilityNo
Blue light filterYes
Management features
Number of OSD languages11
On Screen Display (OSD) languagesCzech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian
Multimedia
Built-in microphoneNo
Built-in cameraNo
Design
CertificationCB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH
Product colourBlack
International Protection (IP) codeIP54
Camera
Built-in cameraNo
Technical details
Height (without stand)25.4 cm
Depth (without stand)31.2 cm
Width (without stand)38.9 cm
Cable lock slotYes
HDMIYes
Display viewable area (HxV)344.2 x 193.6 mm
Built-in microphoneNo
Product colourBlack
Sustainability certificatesRoHS
USB 2.0 ports quantity2
Touchscreen typeMulti-user
TouchscreenYes
Ergonomics
Wall mountableYes
Cable lock slotYes
Panel mounting interface100 x 100 mm
Tilt angle range5 - 90°
Number of OSD languages11
On Screen Display (OSD) languagesCzech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian
Cable lock slot typeKensington
TiltableYes
Power
Power consumption (standby)2 W
Power consumption (typical)13.5 W
Power consumption (off)2 W
Energy efficiency scaleA to G
Energy efficiency class (SDR)F
Energy consumption (SDR) per 1000 hours13 kWh
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%
Packaging content
Quick start guideYes
Cables includedAC, DisplayPort, HDMI, USB
AC adapter includedYes
Weight & dimensions
Height (without stand)25.4 cm
Depth (without stand)31.2 cm
Width (without stand)38.9 cm
Weight (without stand)4.5 kg
Sustainability
Sustainability certificatesRoHS
Packaging data
AC adapter includedYes
Quick start guideYes
Cables includedAC, DisplayPort, HDMI, USB
Logistics data
Harmonized System (HS) code85285210
Other features
Height (without stand)25.4 cm
Depth (without stand)31.2 cm
Width (without stand)38.9 cm
Quick start guideYes
HDMIYes
Energy efficiency scaleA to G
USB 2.0 ports quantity2
AC adapter includedYes
Display viewable area (HxV)344.2 x 193.6 mm
Touchscreen typeMulti-user
TouchscreenYes
Glass protectionYes
Certificates
CertificationCB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH
Manufacturer iiyama
