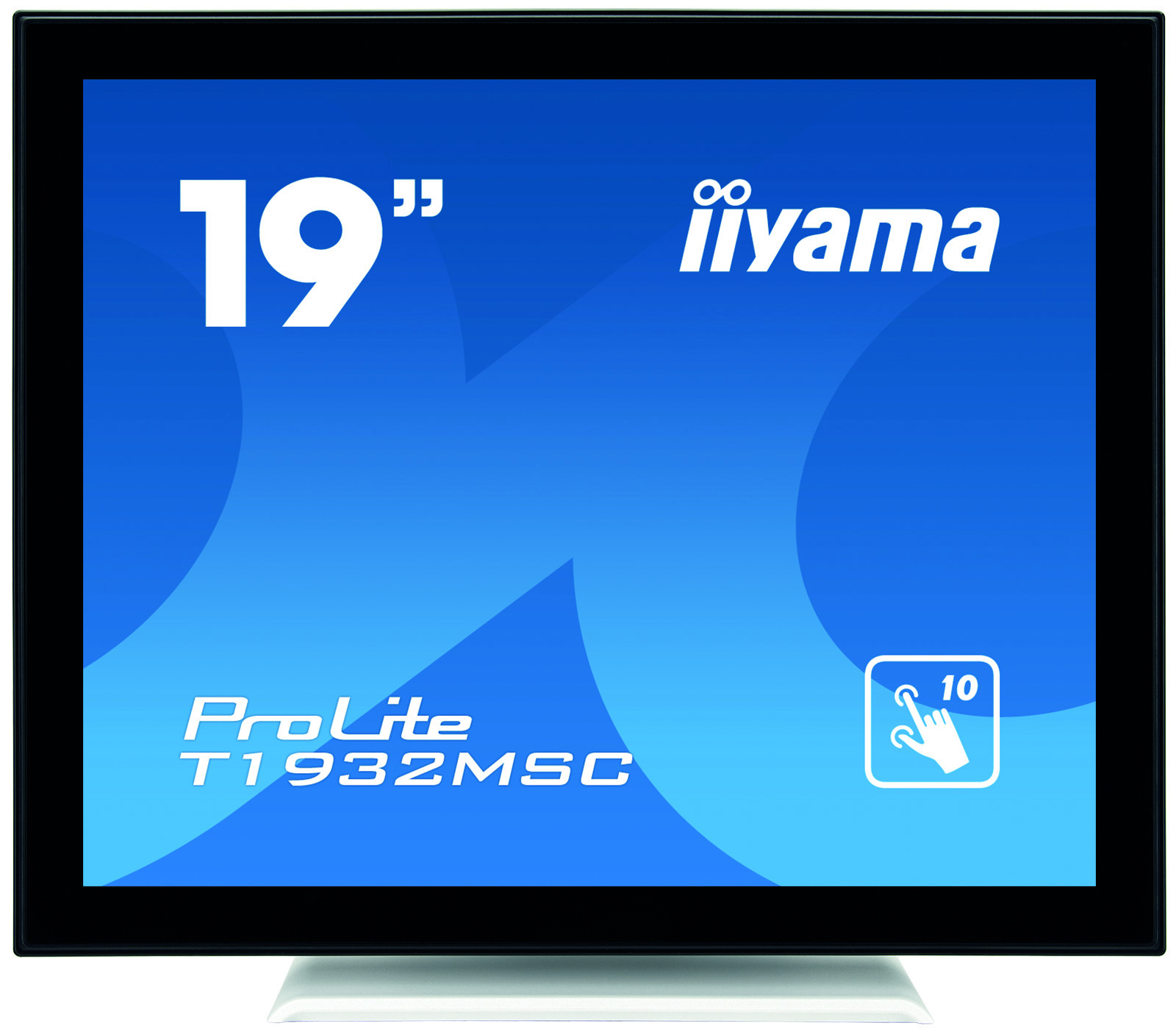

iiyama ProLite T1932MSC-W5AG touch screen monitor 48.3 cm (19") 1280 x 1024 pixels Black,White Multi-touch Multi-user

£540.65 £450.54
Out of stock
SKU

T1932MSC-W5AG

T1932MSC-W5AG, 19", 1280x1024, 5:4, IPS, LED, 14 ms, projective capacitive, VGA, HDMI, DP, RMS 2x 1W, IP54, 432x391x219 mm
The ProLite T1932MSC-W5AG 19" multi touch screen is based on projective capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The IPS matrix guarantees high performance with accurate and consistent colour reproduction, and wide viewing angles. Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touch screen with an adjustable stand offering full 90 degree positioning angles. In addition, the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours. IPS IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it. TOUCH TECHNOLOGY - CAPACITIVE This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen. IP54 The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water. SCRATCH RESISTANCE Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched. AG COATING The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
More Information
SKU T1932MSC-W5AG
EAN 4948570116140
Specification
Display
HDCPYes
Screen shapeFlat
Display number of colours16.78 million colours
Native aspect ratio5:4
Display technologyLED
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.2928 x 0.2928 mm
Horizontal scan range31 - 80 kHz
Vertical scan range50 - 75 Hz
Aspect ratio5:4
Separate H/V syncYes
Display resolution1280 x 1024 pixels
Response time14 ms
Display diagonal48.3 cm (19")
Contrast ratio (typical)1000:1
Touchscreen typeMulti-user
TouchscreenYes
Panel typeIPS
Display diagonal (metric)48 cm
Touch technologyMulti-touch
Touchscreen technologyProjected capacitive system
Display brightness215 cd/m²
Audio
Built-in speaker(s)Yes
RMS rated power2 W
Performance
Built-in speaker(s)Yes
RMS rated power2 W
Built-in cameraNo
AMD FreeSyncNo
NVIDIA G-SYNCNo
OmniTapps Multitouch compatibilityNo
Management features
Number of OSD languages7
On Screen Display (OSD) languagesGerman, English, Spanish, French, Italian, Japanese
Plug and PlayYes
Multimedia
Number of speakers2
Built-in speaker(s)Yes
RMS rated power2 W
Built-in cameraNo
Design
CertificationCB, CE, TÜV-Bauart, CU, cULus, VCCI
Product colourBlack, White
International Protection (IP) codeIP54
Camera
Built-in cameraNo
Ports & interfaces
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DisplayPorts quantity1
HDCPYes
PC Audio inYes
HDMIYes
USB Touch portYes
Technical details
Height (without stand)21.9 cm
Depth (without stand)39.1 cm
Width (without stand)43.2 cm
Cable lock slotYes
HDMIYes
Display viewable area (HxV)374.8 x 300 mm
Product colourBlack, White
Power supply typeAC
Touchscreen typeMulti-user
TouchscreenYes
Ergonomics
Wall mountableYes
Cable lock slotYes
Panel mounting interface100 x 100 mm
Tilt angle range5 - 90°
Number of OSD languages7
On Screen Display (OSD) languagesGerman, English, Spanish, French, Italian, Japanese
Plug and PlayYes
Cable lock slot typeKensington
Power
Power supply typeAC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (standby)2 W
Power consumption (typical)25 W
Power consumption (off)2 W
Energy efficiency scaleA to G
Energy efficiency class (SDR)E
Energy consumption (SDR) per 1000 hours14 kWh
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%
Packaging content
Quick start guideYes
Cables includedAudio (3.5mm), DisplayPort, HDMI, USB
Weight & dimensions
Height (without stand)21.9 cm
Depth (without stand)39.1 cm
Width (without stand)43.2 cm
Weight (without stand)6.9 kg
Packaging data
Quick start guideYes
Cables includedAudio (3.5mm), DisplayPort, HDMI, USB
Logistics data
Harmonized System (HS) code85285210
Other features
Height (without stand)21.9 cm
Depth (without stand)39.1 cm
Width (without stand)43.2 cm
Quick start guideYes
HDMIYes
Energy efficiency scaleA to G
Power supply typeAC
Display viewable area (HxV)374.8 x 300 mm
Touchscreen typeMulti-user
TouchscreenYes
Certificates
CertificationCB, CE, TÜV-Bauart, CU, cULus, VCCI
