£558.18 £465.15

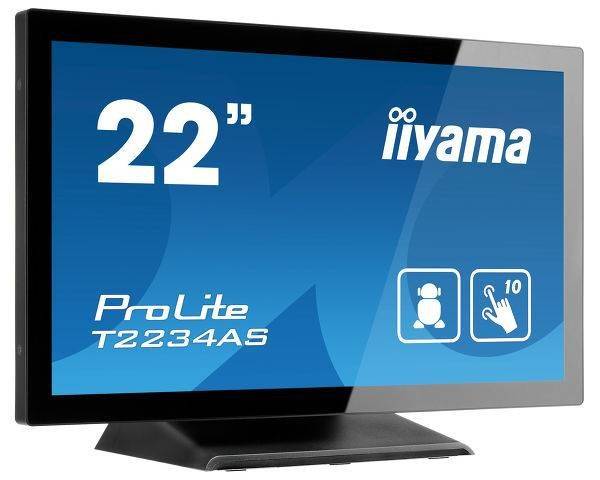

iiyama ProLite T2234AS-B1 touch screen monitor 54.6 cm (21.5") 1920 x 1080 pixels Black Multi-touch Multi-user

£558.18 £465.15
In stock
SKU

T2234AS-B1

Need help ordering? Call 0208 200 2000

21.5" IPS LED, 1920 x 1080, 16:9, 350 cd/m², 1000:1, 8ms
22” PCAP 10pt touch screen with Android Connect and go with the ProLite T2234AS-B1, the all-in-one monitor solution for shops, retail or information desks. This 21.5” PCAP 10-point touchscreen with Android allows users to directly connect and operate the monitor from any device. The HDMI output makes it easy to connect a second customer-facing display for dynamic content and advertising. The robust screen comes with a rugged bezel and an IP65 rating, meaning the monitor is dust and water resistant from the front. Cables can be neatly tied with the special cable cover, so they cannot come loose or move around. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect interactive display for instore retail.

Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
More Information
SKU T2234AS-B1
EAN 4948570117178
Specification
Display
HDCPYes
Screen shapeFlat
Display number of colours16.78 million colours
Native aspect ratio16:9
HD typeFull HD
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.247 x 0.247 mm
Aspect ratio16:9
Display resolution1920 x 1080 pixels
Response time8 ms
Display diagonal54.6 cm (21.5")
Contrast ratio (typical)1000:1
Surface hardness7H
Touchscreen typeMulti-user
TouchscreenYes
Number of simultaneous touchpoints10
Panel typeIPS
Display diagonal (metric)55 cm
Touch technologyMulti-touch
Touchscreen technologyProjected capacitive system
LED backlightYes
Display brightness305 cd/m²
Ports & interfaces
USB 2.0 ports quantity4
HDMI ports quantity1
HDCPYes
HDMIYes
Compatible memory cardsSD
Card reader integratedYes
RS-232CYes
BluetoothYes
Bluetooth version4.0
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-FiYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Audio
Built-in speaker(s)Yes
RMS rated power4 W
Performance
Built-in speaker(s)Yes
RMS rated power4 W
Megapixel (approx.)2.1 MP
Compatible memory cardsSD
Card reader integratedYes
Built-in microphoneNo
Built-in cameraNo
AMD FreeSyncNo
NVIDIA G-SYNCNo
Operating system installedAndroid
Windows operating systems supportedYes
Linux operating systems supportedYes
Operating system version8.1
Management features
Plug and PlayYes
Network
Ethernet LAN (RJ-45) ports1
BluetoothYes
Bluetooth version4.0
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-FiYes
Ethernet LANYes
Multimedia
Number of speakers2
Built-in speaker(s)Yes
RMS rated power4 W
Megapixel (approx.)2.1 MP
Built-in microphoneNo
Built-in cameraNo
Design
CertificationCE, CU, cULus, CCC
Product colourBlack
International Protection (IP) codeIP65
Glass thickness2.5 mm
Camera
Megapixel (approx.)2.1 MP
Built-in cameraNo
Technical details
Height (without stand)35.1 cm
Depth (without stand)21.9 cm
Width (without stand)51.8 cm
Placement supportedHorizontal/Vertical
HDMIYes
Compatible memory cardsSD
Card reader integratedYes
Built-in microphoneNo
Product colourBlack
Built-in processorYes
Power supply typeAC
USB 2.0 ports quantity4
Surface hardness7H
Touchscreen typeMulti-user
TouchscreenYes
Number of simultaneous touchpoints10
RS-232CYes
Software
Windows operating systems supportedYes
Linux operating systems supportedYes
Ergonomics
Wall mountableYes
Panel mounting interface100 x 100 mm
Tilt angle range-5 - 90°
Plug and PlayYes
Power
Power supply typeAC
Power consumption (standby)0.5 W
Power consumption (typical)25 W
AC adapter output voltage12 V
Power managementYes
Packaging content
Quick start guideYes
Cables includedAC
AC adapter includedYes
Weight & dimensions
Height (without stand)35.1 cm
Depth (without stand)21.9 cm
Width (without stand)51.8 cm
Weight (without stand)6.6 kg
Thin Client
Operating system installedAndroid
Processor frequency1.8 GHz
Internal memory2048 MB
Internal memory typeDDR3
Graphics cardMail T760 MP4
eMMC capacity16 GB
Packaging data
AC adapter includedYes
Quick start guideYes
Cables includedAC
Logistics data
Harmonized System (HS) code85285210
Other features
Height (without stand)35.1 cm
Depth (without stand)21.9 cm
Width (without stand)51.8 cm
BluetoothYes
Bluetooth version4.0
Quick start guideYes
HDMIYes
Surface hardness7H
Built-in processorYes
Power supply typeAC
USB 2.0 ports quantity4
AC adapter includedYes
Placement supportedHorizontal/Vertical
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Power managementYes
Touchscreen typeMulti-user
TouchscreenYes
Number of simultaneous touchpoints10
Full HDYes
Certificates
CertificationCE, CU, cULus, CCC
Manufacturer iiyama
