£218.58 £182.15

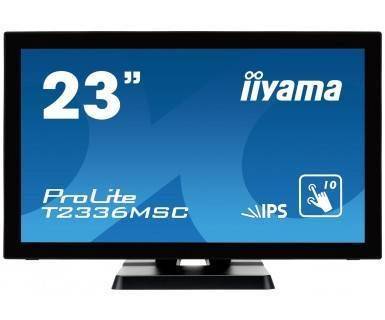

iiyama ProLite T2336MSC-B2

£218.58 £182.15
Out of stock
SKU

T2336MSC-B2

ProLite T2336MSC-B2 - 23", 1920 x 1080, IPS LED, 16:9, 250 cd/m², 5 ms
With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2336MSC delivers seamless and accurate touch response. The IPS panel technology guarantees high performance with exceptional colour reproduction and wide viewing angles, making it an excellent choice for a vast array of demanding interactive applications. The flexible stand can be positioned at several angles, creating a comfortable and ergonomic user experience. The ProLite T2336MSC is the ideal screen for a great Windows8 touch-experience.
More Information
SKU T2336MSC-B2
EAN 4948570114030
Specification
Display
DisplayIPS
Screen shapeFlat
Display number of colours16.78 million colours
Native aspect ratio16:9
HD typeFull HD
Display technologyLED
Contrast ratio (dynamic)5000000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.2652 x 0.2652 mm
Horizontal scan range30 - 80 kHz
Vertical scan range56 - 75 Hz
Aspect ratio16:9
Viewable size diagonal58.4 cm
Separate H/V syncYes
Display resolution1920 x 1080 pixels
Response time5 ms
Display diagonal58.4 cm (23")
Contrast ratio (typical)1000:1
TouchscreenYes
Number of simultaneous touchpoints10
Panel typeIPS
Display diagonal (metric)58.4 cm
Touch technologyMulti-touch
Touchscreen technologyProjected capacitive system
Display brightness215 cd/m²
Audio
Built-in speaker(s)Yes
RMS rated power4 W
Performance
Built-in speaker(s)Yes
RMS rated power4 W
AMD FreeSyncNo
NVIDIA G-SYNCNo
Windows operating systems supportedYes
Management features
Number of OSD languages9
Plug and PlayYes
Multimedia
Number of speakers2
Built-in speaker(s)Yes
RMS rated power4 W
Design
CertificationCE, TÜV-Bauart, VCCI, PSE, CU
Product colourBlack
Ports & interfaces
DVI portYes
VGA (D-Sub) ports quantity1
DVI-D ports quantity1
HDMI ports quantity1
PC Audio inYes
HDMIYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
Technical details
Height (without stand)33.6 cm
Depth (without stand)5.7 cm
Width (without stand)56.1 cm
Cable lock slotYes
HDMIYes
Display viewable area (HxV)509.18 x 286.41 mm
Product colourBlack
Weight (with stand)6.3 kg
TouchscreenYes
Number of simultaneous touchpoints10
Software
Windows operating systems supportedYes
Ergonomics
Wall mountableYes
VESA mountingYes
Cable lock slotYes
Panel mounting interface100 x 100 mm
LED indicatorsYes
Tilt angle range-5 - 90°
Number of OSD languages9
Plug and PlayYes
TiltableYes
Power
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (standby)0.5 W
Power consumption (typical)25.3 W
Energy efficiency scaleA to G
Energy efficiency class (SDR)F
Energy consumption (SDR) per 1000 hours19 kWh
Power managementYes
Operational conditions
Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%
Packaging content
Quick start guideYes
Cables includedAC, Audio (3.5mm), DVI, USB, VGA
Weight & dimensions
Height (without stand)33.6 cm
Depth (without stand)5.7 cm
Width (without stand)56.1 cm
Width (with stand)561 mm
Depth (with stand)254 mm
Height (with stand)379 mm
Weight (with stand)6.3 kg
Indication
LED indicatorsYes
Packaging data
Quick start guideYes
Cables includedAC, Audio (3.5mm), DVI, USB, VGA
Logistics data
Harmonized System (HS) code85285210
Other features
Height (without stand)33.6 cm
Depth (without stand)5.7 cm
Width (without stand)56.1 cm
Quick start guideYes
HDMIYes
Energy efficiency scaleA to G
DisplayIPS
Dimensions (W x D x H) with stand561 x 254 x 379 mm
Display viewable area (HxV)509.18 x 286.41 mm
Power managementYes
TouchscreenYes
Number of simultaneous touchpoints10
Full HDYes
Energy efficiency class (old)B
Certificates
CertificationCE, TÜV-Bauart, VCCI, PSE, CU
Manufacturer iiyama
PDF Url https://objects.icecat.biz/objects/
In Stock N
