£260.82 £217.35

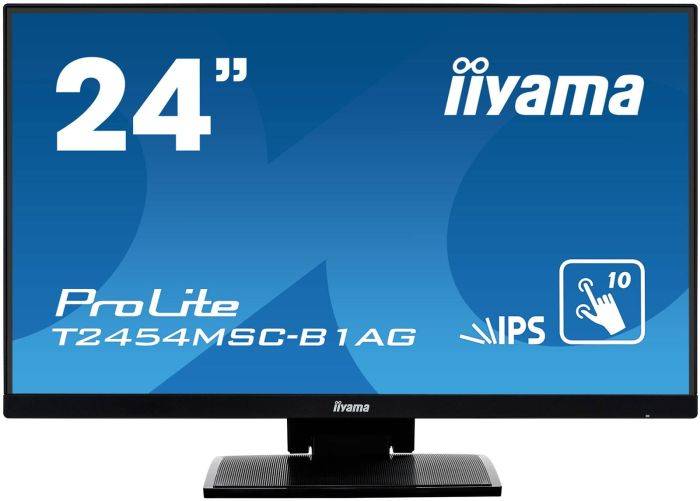

iiyama ProLite T2454MSC-B1AG 23.8" 1920 x 1080pixels Multi-touch Multi-user Black touch screen monitor

£260.82 £217.35
In stock
SKU

T2454MSC-B1AG

Need help ordering? Call 0208 200 2000

ProLite T2454MSC-B1AG, 23.8", 1920x1080, IPS LED, 16:9, 4 ms, VGA, HDMI, 2x USB 3.0, HDCP, RMS 2x 2W, IPX1, AC 100 - 240V, 50/60Hz, 540.5 x 388 x 128mm


24” P-CAP 10pt touch screen featuring IPS panel technology and Anti Glare coating
With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2454MSC-B1AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. The ProLite T2454MSC-B1AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations.

TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

IPS
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

AG COATING
The Anti Glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.

VESA
VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.
More Information
SKU T2454MSC-B1AG
EAN 4948570116416
Specification
Display
HDCPYes
Screen shapeFlat
Display number of colours16.78 million colours
Native aspect ratio16:9
HD typeFull HD
Display technologyLED
Contrast ratio (dynamic)5000000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.274 x 0.274 mm
Horizontal scan range30 - 80 kHz
Vertical scan range56 - 75 Hz
Aspect ratio16:9
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Display resolution1920 x 1080 pixels
Response time4 ms
Display diagonal60.5 cm (23.8")
Contrast ratio (typical)1000:1
Touchscreen typeMulti-user
TouchscreenYes
Number of simultaneous touchpoints10
Panel typeIPS
Display diagonal (metric)60.5 cm
Touch technologyMulti-touch
Touchscreen technologyProjected capacitive system
LED backlightYes
Display brightness250 cd/m²
Audio
Built-in speaker(s)Yes
RMS rated power4 W
Performance
Built-in speaker(s)Yes
RMS rated power4 W
Megapixel (approx.)2.1 MP
Mean time between failures (MTBF)30000 h
Built-in microphoneNo
Built-in cameraNo
AMD FreeSyncNo
NVIDIA G-SYNCNo
Windows operating systems supportedYes
Linux operating systems supportedYes
OmniTapps Multitouch compatibilityNo
Management features
Number of OSD languages10
On Screen Display (OSD) languagesGerman, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian
Plug and PlayYes
Multimedia
Built-in speaker(s)Yes
RMS rated power4 W
Megapixel (approx.)2.1 MP
Built-in microphoneNo
Built-in cameraNo
Design
CertificationCE, TÜV-Bauart, VCCI-B, EAC, ErP, WEEE, REACH, CB
Product colourBlack
International Protection (IP) codeIPX1
Mean time between failures (MTBF)30000 h
Camera
Megapixel (approx.)2.1 MP
Built-in cameraNo
Ports & interfaces
VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDCPYes
Audio input3.5mm
HDMIYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB Touch portYes
Technical details
Height (without stand)32.2 cm
Depth (without stand)4.65 cm
Width (without stand)54 cm
Cable lock slotYes
Placement supportedHorizontal/Vertical
Mean time between failures (MTBF)30000 h
HDMIYes
Display viewable area (HxV)527.04 x 296.46 mm
Built-in microphoneNo
Product colourBlack
Sustainability certificatesRoHS
Power supply typeAC
Touchscreen typeMulti-user
TouchscreenYes
Number of simultaneous touchpoints10
Software
Windows operating systems supportedYes
Linux operating systems supportedYes
Ergonomics
Wall mountableYes
VESA mountingYes
Cable lock slotYes
Panel mounting interface100 x 100 mm
Tilt angle range-5 - 90°
Height adjustment7 cm
Number of OSD languages10
On Screen Display (OSD) languagesGerman, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian
Plug and PlayYes
Height adjustmentYes
Cable lock slot typeKensington
TiltableYes
Power
Power supply typeAC
AC input voltage100-240 V
AC input frequency50 - 60 Hz
Power consumption (standby)0.5 W
Power consumption (typical)24 W
Energy efficiency scaleA to G
Energy efficiency class (SDR)F
Energy consumption (SDR) per 1000 hours20 kWh
Operational conditions
Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%
Packaging content
Quick start guideYes
Cables includedAC, HDMI, USB, VGA
Weight & dimensions
Height (without stand)32.2 cm
Depth (without stand)4.65 cm
Width (without stand)54 cm
Width (with stand)540.5 mm
Depth (with stand)128 mm
Height (with stand)388 mm
Weight (without stand)5.5 kg
Sustainability
Sustainability certificatesRoHS
Packaging data
Quick start guideYes
Cables includedAC, HDMI, USB, VGA
Logistics data
Harmonized System (HS) code85285210
Other features
Height (without stand)32.2 cm
Depth (without stand)4.65 cm
Width (without stand)54 cm
Quick start guideYes
HDMIYes
Energy efficiency scaleA to G
Power supply typeAC
Dimensions (W x D x H) with stand540.5 x 128 x 388 mm
Placement supportedHorizontal/Vertical
Mean time between failures (MTBF)30000 h
Display viewable area (HxV)527.04 x 296.46 mm
Touchscreen typeMulti-user
TouchscreenYes
Number of simultaneous touchpoints10
Full HDYes
Certificates
CertificationCE, TÜV-Bauart, VCCI-B, EAC, ErP, WEEE, REACH, CB
Manufacturer iiyama
