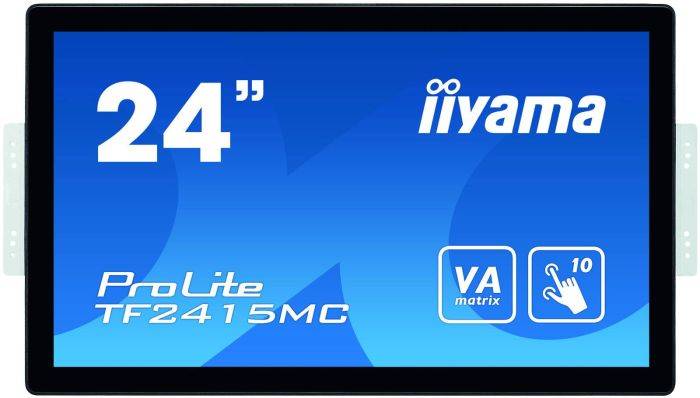

iiyama ProLite TF2415MC-B2 touch screen monitor 60.5 cm (23.8") 1920 x 1080 pixels Black Multi-touch Multi-user

£467.22 £389.35
In stock
SKU

TF2415MC-B2

Need help ordering? Call 0208 200 2000

TF2415MC-B2, 23.8", 1920x1080, VA LED, 16:9, 16 ms, VGA, HDMI, DP, HDCP, 575x347x42.5 mm
The ProLite TF2415MC-B2 (23.8 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2415MC-B2 comes equipped with external mounting brackets making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

FOAM SEAL
A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.

OPEN FRAME BRACKETS
This open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail.

BALL-DROP-TEST PROOF
The ball-drop-test uses a half-kilo steel ball, which is dropped onto the touch screen from a height of 1.3 meter. If the touch screen surface remains unaffected, the monitor passes the ball-drop-test for high impact resistance and durability.

TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
More Information
SKU TF2415MC-B2
EAN 4948570116775
Specification
Display
HDCPYes
Screen shapeFlat
Display number of colours16.78 million colours
Native aspect ratio16:9
HD typeFull HD
Display technologyVA
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.2745 x 0.2745 mm
Horizontal scan range31.4 - 82 kHz
Vertical scan range56 - 75 Hz
Aspect ratio16:9
Separate H/V syncYes
Display resolution1920 x 1080 pixels
Response time16 ms
Display diagonal60.5 cm (23.8")
Contrast ratio (typical)3000:1
Touchscreen typeMulti-user
TouchscreenYes
Number of simultaneous touchpoints10
Display diagonal (metric)60.5 cm
Touch technologyMulti-touch
Touchscreen technologyProjected capacitive system
Display brightness315 cd/m²
Performance
Built-in microphoneNo
Built-in cameraNo
AMD FreeSyncNo
NVIDIA G-SYNCNo
OmniTapps Multitouch compatibilityNo
Management features
Number of OSD languages7
On Screen Display (OSD) languagesGerman, English, Spanish, French, Italian, Japanese
Plug and PlayYes
Multimedia
Built-in microphoneNo
Built-in cameraNo
Design
CertificationCB, CE, TÜV-Bauart, CU, cULus
Product colourBlack
International Protection (IP) codeIP65
Camera
Built-in cameraNo
Ports & interfaces
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DisplayPorts quantity1
HDCPYes
Audio output1
HDMIYes
USB Touch portYes
Technical details
Height (without stand)34.7 cm
Depth (without stand)4.25 cm
Width (without stand)57.5 cm
Placement supportedHorizontal/Vertical
HDMIYes
Display viewable area (HxV)527.04 x 296.46 mm
Built-in microphoneNo
Product colourBlack
Power supply typeDC
Touchscreen typeMulti-user
TouchscreenYes
Number of simultaneous touchpoints10
Ergonomics
Wall mountableYes
VESA mountingYes
Panel mounting interface100 x 100 mm
Number of OSD languages7
On Screen Display (OSD) languagesGerman, English, Spanish, French, Italian, Japanese
Plug and PlayYes
Power
Power supply typeDC
Power consumption (standby)1.2 W
Power consumption (typical)25 W
Power consumption (off)1.2 W
Energy efficiency scaleA to G
Energy efficiency class (SDR)F
Energy consumption (SDR) per 1000 hours22 kWh
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%
Packaging content
Quick start guideYes
Cables includedAC, DisplayPort, HDMI, USB
AC adapter includedYes
Weight & dimensions
Height (without stand)34.7 cm
Depth (without stand)4.25 cm
Width (without stand)57.5 cm
Weight (without stand)5.8 kg
Packaging data
AC adapter includedYes
Quick start guideYes
Cables includedAC, DisplayPort, HDMI, USB
Logistics data
Harmonized System (HS) code85285210
Other features
Height (without stand)34.7 cm
Depth (without stand)4.25 cm
Width (without stand)57.5 cm
Quick start guideYes
HDMIYes
Energy efficiency scaleA to G
Power supply typeDC
AC adapter includedYes
Placement supportedHorizontal/Vertical
Display viewable area (HxV)527.04 x 296.46 mm
Touchscreen typeMulti-user
TouchscreenYes
Number of simultaneous touchpoints10
Glass protectionYes
Full HDYes
Certificates
CertificationCB, CE, TÜV-Bauart, CU, cULus
