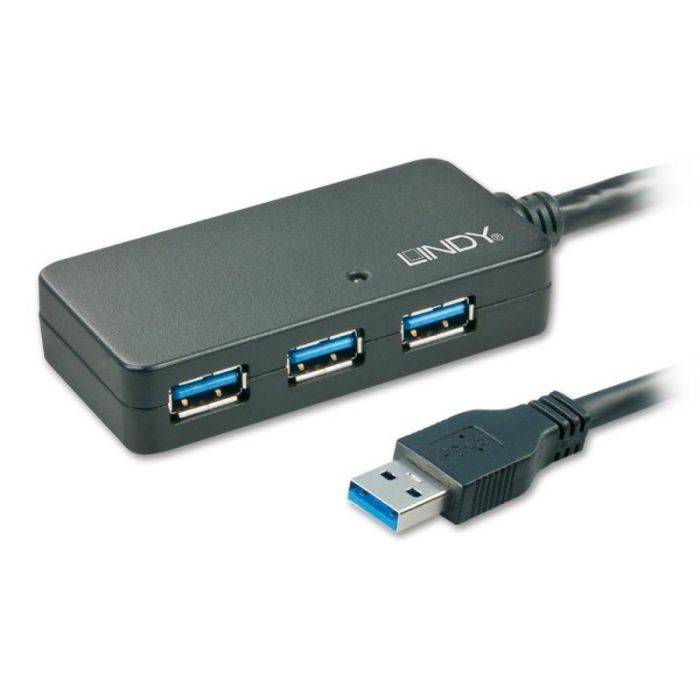

Lindy 10m USB 3.0 Active Extension Hub Pro 4 Port

£115.38 £96.15
In stock
SKU

43159

Need help ordering? Call 0208 200 2000

10m USB 3.0 Active Extension Pro Hub
High performance hub with active cable that provides an extended 10m connection between a computer and up to 4 USB 3.0 devices_x000D_ Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of over 40m (depending on the cable configurations used)_x000D_ Supports the full USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps_x000D_ Easy to use – connects to the device’s existing USB cable (5m maximum)_x000D_ 2 year warranty_x000D_ _x000D_ The Lindy USB Active Extension Hub Pro is a high performance hub with active cable that allows access to four USB 3.0 SuperSpeed peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension hub is perfect for transferring large data volumes quickly and reliably._x000D_ _x000D_ This 10m extension hub can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to about 40m (depending on the cable configurations used)._x000D_ _x000D_ Please note that only the USB 3.0 Active Extension Pro 8m (Nr. 43158) or 15m (Nr. 43229) can be connected directly to your computer. If you are creating an extension using multiple units from the Extension Pro System then the first unit must always be the USB 3.0 Active Extension Pro 8m (Nr. 43158) or 15m (Nr. 43229). Once the first cable has been connected, you can then cascade further cables to achieve a maximum distance of 40m. The final part of the extension can be any of the three parts of the Extension Pro System. If you need to extend multiple devices or if you connect a USB device with high power requirement, then you should use the 10m Hub Pro unit (Nr. 43159) with it’s power supply as the final part of the extension._x000D_ _x000D_ This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments._x000D_ _x000D_ Information about USB 3.0, 3.1 & 3.2_x000D_ _x000D_ USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface._x000D_ USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps._x000D_ USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps._x000D_ _x000D_
More Information
SKU 43159
EAN 4002888431590
Specification
Ports & interfaces
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Hub interfacesUSB 3.2 Gen 1 (3.1 Gen 1) Type-A
DC-in jackYes
Ports quantity4
Cable shieldingAluminum mylar foil
Cable length10 m
Features
Plug and PlayYes
LED indicatorsYes
Product colourBlack
CertificationCE, UKCA, FCC, RoHS, REACH, California Proposition 65
Cable typeRound cable
Cable length10 m
Data transfer rate5000 Mbit/s
Housing materialPlastic
Cable jacket materialPolyvinyl chloride (PVC)
AWG wire size24/24/20
Plating materialNickel
Cable diameter7 mm
Conductor materialTinned copper
Contact materialBrass
Connector contacts platingGold
Bend radius (min)3.6 cm
Transmission mediumTwisted pair
Nominal attenuation0.064MHz - 0.08dB 0.256MHz - 0.11dB 0.512MHz - 0.13dB 0.772MHz - 0.15dB 1.0MHz - 0.20dB 4MHz - 0.39dB 8MHz - 0.57dB 12MHz - 0.67dB 24MHz - 0.95dB 48MHz - 1.35dB 96MHz - 1.90dB 200MHz - 3.20dB 400MHz - 5.80dB
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-A
Data transmission
Data transfer rate5000 Mbit/s
Power
Power note3.5/1.35mm DC
Technical details
Plug and PlayYes
Product colourBlack
Operating temperature (T-T)-20 - 60 °F
Performance
CertificationCE, UKCA, FCC, RoHS, REACH, California Proposition 65
Plug and PlayYes
Data transfer rate5000 Mbit/s
Harmonized System (HS) code84719000
Weight & dimensions
Weight790 g
Width80 mm
Depth38 mm
Height15 mm
Connector 1 dimensions (WxDxH)15 x 42 x 8 mm
Package width240 mm
Package depth200 mm
Package height70 mm
Package weight900 g
Packaging data
Package typeBox
Package width240 mm
Package depth200 mm
Package height70 mm
Package weight900 g
Quantity per pack1 pc(s)
Packaging content
ManualYes
Package typeBox
Design
LED indicatorsYes
Product colourBlack
CertificationCE, UKCA, FCC, RoHS, REACH, California Proposition 65
Cable length10 m
Cable shieldingAluminum mylar foil
Operational conditions
Operating temperature (T-T)-20 - 60 °F
Operating temperature (T-T)0 - 50 °C
Certificates
CertificationCE, UKCA, FCC, RoHS, REACH, California Proposition 65
Indication
LED indicatorsYes
Other features
Cable typeRound cable
Manufacturer Lindy
