StarTech.com 1-Port 10G Open SFP+ Network Card - PCIe - Intel Chip - MM/SM

£268.14 £223.45
In stock
SKU

PEX10000SFPI

Need help ordering? Call 0208 200 2000

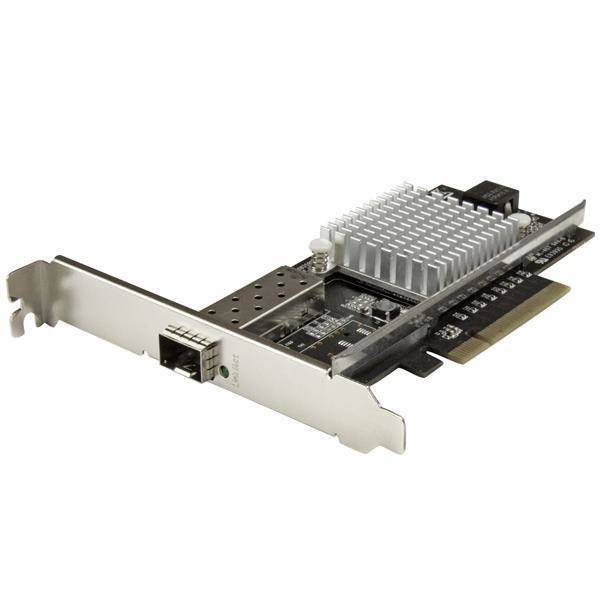

StarTech.com 1-Port 10G Open SFP+ Network Card - PCIe - Intel Chip - MM/SM - PCI Express 10G NIC w/ Open SFP+ - 10G Ethernet network card
This fiber network card delivers reliable, high-performance network connectivity, by adding an open SFP+ slot to your server or high-powered workstation. It provides an easy and cost-effective way to upgrade your server or workstation to a 10 Gigabit fiber network using the SFP+ module of your choice and gives you the flexibility to use either multimode or single-mode fiber.

Increase your network speed
Several factors drive the need for more bandwidth in your network infrastructure. An increase in the number of network users and data-intensive applications, such as multimedia streaming and large file transfers all contribute to the need for more bandwidth in your network infrastructure. This fiber NIC lets you take advantage of the increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps.

Add scalable network connections to your server or workstation
The fiber NIC is compatible with most 10GbE SFP+ transceivers. This gives you flexible and scalable configuration options for connecting your computer directly to a fiber network, at greater distances. The card features an open SFP+ slot with support for one interchangeable 10GBase SFP+ module. This gives you the option to use the fiber transceiver module that best suits your network needs based on distance and connector type. StarTech.com offers a variety of SFP+ transceiver modules including the SFP10GLRST single-mode SFP+ the SFP10GLRMST multi-mode SFP+, and SFP10GSRST multimode LC with DDM. In addition, StarTech.com SFP+ Cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.

Enhance your network capabilities
The 10 Gigabit network card features the Intel® 82599 chipset, delivering the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip offers many advanced features including Intel® Virtualization Technology for Connectivity, PXE network boot support and up to 15K jumbo frame support. The PEX10000SFPI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More Information
SKU PEX10000SFPI
EAN 0065030866163
Specification
Ports & interfaces
InternalYes
PCI version2.0
Fiber ports quantity1
Fiber optic connectorSFP+
InterfaceFiber
Host interfacePCI Express
Connectivity technologyWired
Bandwidth
Full duplexYes
Maximum data transfer rate10000 Mbit/s
Network
ChipsetIntel® 82599
VLAN taggingYes
Jumbo frames15000
Networking standardsIEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x
Jumbo frames supportYes
Full duplexYes
Fiber ethernet cabling technology10GBASE-LR, 10GBASE-LRM, 10GBASE-SR
Maximum data transfer rate10000 Mbit/s
Flow control supportYes
Technical details
Product colourBlack
Harmonized System (HS) code85176990
Sustainability complianceYes
Sustainability certificatesCE, RoHS
Design
Product colourBlack
ChipsetIntel® 82599
CertificationCE, FCC, REACH
InternalYes
Component forPC
Software
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supportedYes
System requirements
Server operating systems supportedWindows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supportedYes
Operational conditions
Operating temperature (T-T)5 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Sustainability
Sustainability complianceYes
Sustainability certificatesCE, RoHS
Weight & dimensions
Width18 mm
Depth135 mm
Height120 mm
Weight102 g
Package width142 mm
Package depth172 mm
Package height32 mm
Package weight178 g
Packaging data
Low-profile bracketYes
Package width142 mm
Package depth172 mm
Package height32 mm
Package weight178 g
Quick start guideYes
Performance
Server operating systems supportedWindows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supportedYes
Certificates
CertificationCE, FCC, REACH
Other features
ChipsetIntel® 82599
Jumbo frames15000
Quick start guideYes
Flow control supportYes
Harmonized System (HS) code85176990
Packaging content
Low-profile bracketYes
Quick start guideYes
Logistics data
Master (outer) case width359 mm
Master (outer) case length585 mm
Master (outer) case height309 mm
Products per master (outer) case80 pc(s)
