£140.92 £117.43

StarTech.com 10G PCIe SFP+ Card - Single SFP+ Port Network Adapter - Open SFP+ for MSA-Compliant Modules/Direct-Attach Cables - 10 Gigabit Fiber PCIe NIC - PCI Express SFP+ Network Card

£140.93 £117.44
In stock
SKU

PEX10GSFP

Need help ordering? Call 0208 200 2000

StarTech.com 10G PCIe SFP+ Card - Single SFP+ Port Network Adapter - Open SFP+ for MSA-Compliant Modules/Direct-Attach Cables - 10 Gigabit Fiber PCIe NIC - PCI Express SFP+ Network Card (PEX10GSFP)

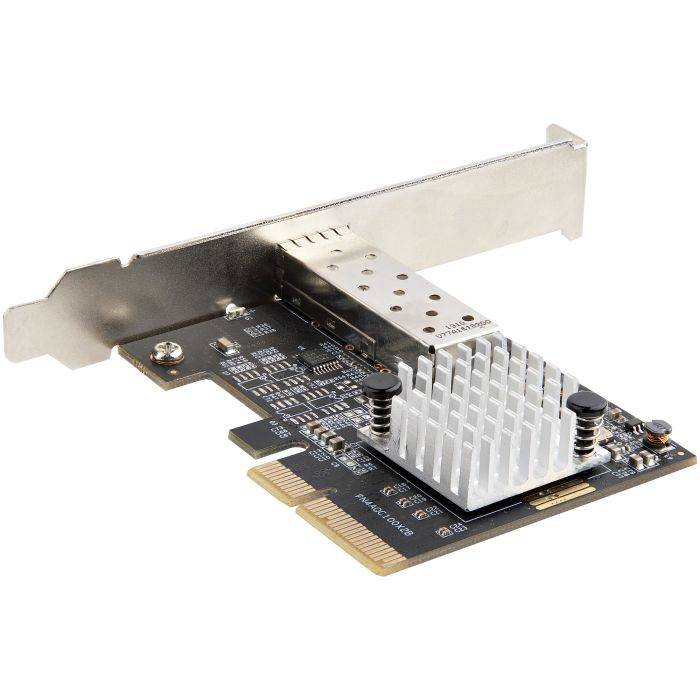

PCI Express SFP+ Card | 10 Gbps | Open SFP+ Slot | Fiber, Copper & DAC | PCIe 3.0 x4Increase your network speedThis PCIe network card lets you take advantage of improved bandwidth in data-intensive applications such as multimedia streaming and large file transfers. This fiber NIC offers data transfer rates of up to 10Gbps which improve speeds and reduces load times.Scalable network connectionFeaturing an open SFP+ slot, you have the flexibility to make changes as needed just by swapping the module in use, whether it is fiber, copper, or direct attach cables (DAC). The card complies with MSA, allowing use with modules from StarTech.com or 3rd parties that support MSA.Enhance your existing hardwareThe 10Gb network card easily connects via an available x4 PCI Express 3.0 expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various types of computer chassis. It supports a wide variety of OSes including Windows and Linux.The PEX10GSFP is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
More Information
SKU PEX10GSFP
EAN 0065030891295
Specification
Ports & interfaces
InternalYes
PCI version3.0
Fiber optic connectorSFP+
InterfaceFiber
Host interfacePCI Express
Connectivity technologyWired
Bandwidth
Full duplexYes
Maximum data transfer rate20000 Mbit/s
Network
ChipsetAquantia AQC100S
VLAN taggingYes
Jumbo frames9000
Networking standardsIEEE 802.1Q, IEEE 802.3ad, IEEE 802.3x
Jumbo frames supportYes
Full duplexYes
Maximum data transfer rate20000 Mbit/s
Fiber mode structureMulti-mode, Single-mode
Flow control supportYes
Technical details
Product colourBlack
Harmonized System (HS) code85176990
Sustainability certificatesCE, RoHS
Design
Product colourBlack
ChipsetAquantia AQC100S
InternalYes
Component forPC
Software
Windows operating systems supportedYes
Mac operating systems supportedYes
Linux operating systems supportedYes
System requirements
Windows operating systems supportedYes
Mac operating systems supportedYes
Linux operating systems supportedYes
Operational conditions
Operating temperature (T-T)5 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Sustainability
Sustainability certificatesCE, RoHS
Weight & dimensions
Width18 mm
Depth94 mm
Height121 mm
Weight55 g
Package width210 mm
Package depth145 mm
Package height35 mm
Package weight145 g
Packaging data
Package width210 mm
Package depth145 mm
Package height35 mm
Package weight145 g
Mounting brackets includedYes
Quick installation guideYes
Packaging content
Mounting brackets includedYes
Quick installation guideYes
Performance
Windows operating systems supportedYes
Mac operating systems supportedYes
Linux operating systems supportedYes
Other features
ChipsetAquantia AQC100S
Jumbo frames9000
Flow control supportYes
Harmonized System (HS) code85176990
Logistics data
Master (outer) case width310 mm
Master (outer) case length355 mm
Master (outer) case height235 mm
Products per master (outer) case20 pc(s)
