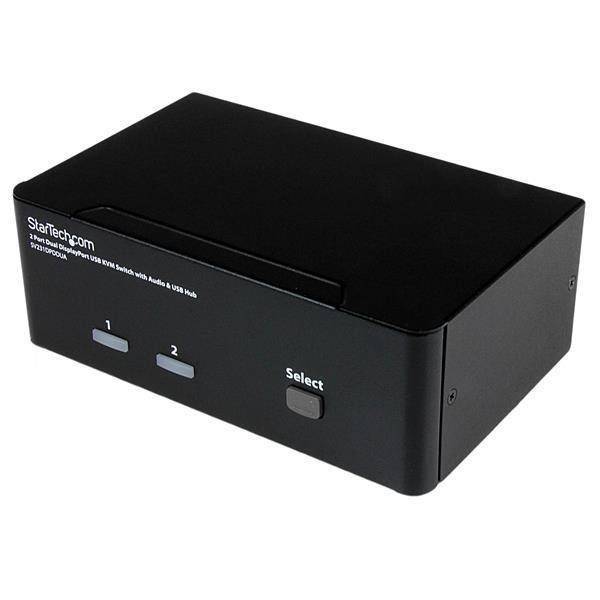

StarTech.com 2 Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub

£323.66 £269.72
In stock
SKU

SV231DPDDUA

Need help ordering? Call 0208 200 2000

StarTech.com Dual Monitor DisplayPort KVM Switch - 2 Port - USB 2.0 Hub - Audio and Microphone - DP KVM Switch (SV231DPDDUA)
Control 2 high-resolution dual DisplayPort computers with a single console

The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.

Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.

Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

The StarTech.com Advantage

- Versatile audio support via digital DisplayPort HD multi-channel audio or 3.5mm stereo analog audio
- Integrated USB 2.0 hub provides peripheral sharing to eliminate the expense of duplicate devices (printers, scanners, etc.)
- Versatile KVM solution works well with Mini-DisplayPort, DisplayPort to DVI or HDMI adapters; perfect for Dual DisplayPort or DisplayPort + DVI or HDMI video output, including Macbook connectivity
More Information
SKU SV231DPDDUA
EAN 0065030839266
Specification
Technical details
Product colourBlack
Rack mountingNo
Hot-Plug supportYes
Push buttonYes
On Screen Display (OSD)No
Number of users1 user(s)
LED indicatorsYes
Hot keysYes
IP controlNo
Audio supportYes
USB hubYes
Sustainability certificatesRoHS
Video
HD type4K Ultra HD
Maximum resolution3840 x 2400 pixels
Ports & interfaces
Console USB ports quantity2
Console ports3.5mm headphone, 3.5mm mic, DisplayPort, USB A
USB connector typeUSB Type-A
Number of microphone inputs3
DisplayPorts quantity6
Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
Audio connectionsYes
Headphone outputs3
DC-in jackYes
USB hubYes
Network
Ethernet LANNo
Performance
DDC2B supportYes
Daisy chainNo
HD type4K Ultra HD
Hot-Plug supportYes
Maximum resolution3840 x 2400 pixels
Number of users1 user(s)
Audio channels7.1
Design
Product colourBlack
Rack mountingNo
Push buttonYes
LED indicatorsYes
Hot keysYes
CertificationCE, FCC, REACH, TAA
Housing materialSteel
Display
Built-in displayNo
On Screen Display (OSD)No
Power
Input current0.8 A
Output current1.5 A
Power plug typeType M
Compatible power plug typesAU, EU, UK, US
Output voltage12 V
AC input voltage110 - 240 V
Power consumption (typical)18 W
External power adapterYes
Sustainability
Sustainability certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Weight & dimensions
Width161 mm
Depth100 mm
Height57.5 mm
Weight734 g
Package width249 mm
Package depth187 mm
Package height100 mm
Package weight1.19 kg
Packaging data
Package width249 mm
Package depth187 mm
Package height100 mm
Package weight1.19 kg
Packaging content
ManualYes
Certificates
CertificationCE, FCC, REACH, TAA
Logistics data
Harmonized System (HS) code85176200
Other features
Push buttonYes
Hot keysYes
IP controlNo
Audio supportYes
Manufacturer StarTech.com
