£99.69 £83.08

StarTech.com 4 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD

£99.70 £83.08
In stock
SKU

HSB4SATSASBA

Need help ordering? Call 0208 200 2000

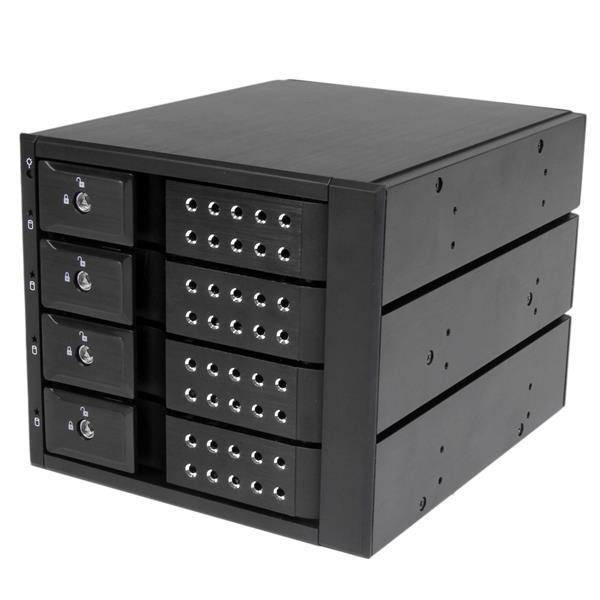

StarTech.com 4 Drive Bay Aluminum Trayless Hot Swap Mobile Rack Backplane with Fan & Lock for 3.5in SAS II / SATA III - 6 Gbps Hard Drive
The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD). For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications. For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure. The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Delivers peak drive performance, with support for full SATA III/SAS II data transfer speeds up to 6Gbps - Flexible drive options with support for both SATA and SAS drive interfaces - Helps maintain ideal drive operating temperatures by maximizing heat dissipation and expelling built-up heat, with a vented aluminum housing and built-in fan
More Information
SKU HSB4SATSASBA
EAN 0065030859547
Specification
Features
LED indicatorsActivity, Power
CertificationCE, FCC
Hot-swapYes
Key lockYes
Number of fans1 fan(s)
Fan diameter7 cm
Data transfer rate6 Gbit/s
Product colourBlack
MaterialAluminium
Technical details
LED indicatorsActivity, Power
CertificationCE, FCC
Hot-swapYes
Operating relative humidity (H-H)5 - 85%
Key lockYes
Operating temperature (T-T)0 - 55 °C
Number of fans1 fan(s)
Fan diameter7 cm
Data transfer rate6 Gbit/s
Product colourBlack
MaterialAluminium
Sustainability certificatesRoHS
Harmonized System (HS) code84733080
Ports & interfaces
External SATA ports quantity4
Weight & dimensions
Width145 mm
Weight1.3 kg
Height124 mm
Depth197 mm
Packaging data
Package weight1.59 kg
Packaging content
Screws includedYes
ManualYes
Cables includedSATA
Operational conditions
Operating relative humidity (H-H)5 - 85%
Storage temperature (T-T)-20 - 65 °C
Operating temperature (T-T)0 - 55 °C
Sustainability
Sustainability certificatesRoHS
Manufacturer StarTech.com
