StarTech.com Dual Monitor USB 3.0 Docking Station with HDMI - DVI - 6 x USB Ports

£80.16 £66.80
In stock
SKU

USB3SDOCKHD

Need help ordering? Call 0208 200 2000

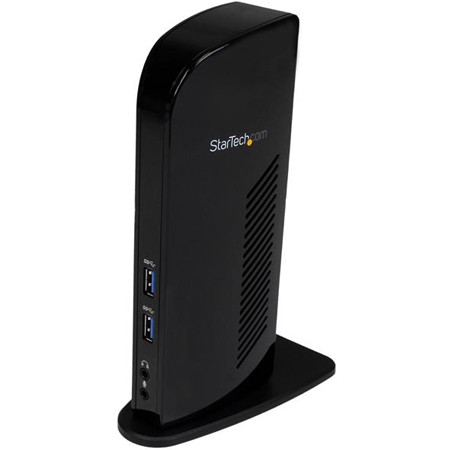

StarTech.com Dual Monitor USB 3.0 Laptop Docking Station with HDMI/DVI/VGA & 6xUSB Ports - Universal USB Dock for Mac & Windows - Black (USB3SDOCKHD)
Laptop Docking Station | Mac & Windows | DVI to VGA Adapter | Vertical

This USB 3.0 dock combines a 6 port USB 2.0/USB 3.0 hub, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port into a single docking station.

Display Adaptability

Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI and DVI external monitor output providing up to 1920x1200p resolutions, as well as an included DVI to VGA adapter for added flexibility.

Integrated USB Hub

The built-in USB hub features 2 USB 3.0 ports and 4 USB 2.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they connected directly to your laptop.

Versatile Design

With an upright design, the dock occupies as little desk space as your smart phone, so it's perfect for hoteling or hot desk environments.

Direct Ethernet Connectivity

The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a reliable wired network.

StarTech.com’s laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.

The StarTech.com Advantage

- Flexible video output to extend or mirror your desktop at up to 1920x1200, with HDMI and DVI ports, plus included DVI to VGA adapter
- USB 3.0 port replicator adds Gigabit Ethernet networking and audio (Headphone/Mic) from one device
- The laptop docking station provides two additional USB 3.0 ports and four USB 2.0 ports to connect additional devices from a single USB 3.0 connection
More Information
SKU USB3SDOCKHD
EAN 0065030847674
Specification
Ports & interfaces
Combo headphone/mic portNo
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Number of microphone inputs1
Headphone connectivity3.5 mm
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 2.0 ports quantity4
USB connector typeUSB Type-A
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
DVI-I ports quantity1
Microphone inYes
Headphone outputs1
DC-in jackYes
Connectivity technologyWired
Network
Full duplexYes
Auto MDI/MDI-XYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports1
Performance
Maximum digital resolution1920 x 1200 pixels
Full duplexYes
Auto MDI/MDI-XYes
Product colourBlack
Card reader integratedNo
Brand compatibilityAny brand
LED indicatorsPower, USB
Data transfer rate5 Gbit/s
CertificationCE, FCC
Housing materialPlastic
Technical details
Product colourBlack
Brand compatibilityAny brand
Data transfer rate5 Gbit/s
Sustainability certificatesRoHS
Harmonized System (HS) code84733020
Storage
Card reader integratedNo
Power
Input current0.8 A
Power plug typeType C
Compatible power plug typesAU, EU, JP, UK, US
AC input voltage100 - 240 V
Power consumption (typical)20 W
Output voltage5 V
Output current4 A
Software
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows XP Home, Windows XP Professional
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave
Mac compatibilityYes
Other operating systems supportedChrome
Indication
LED indicatorsPower, USB
Operational conditions
Operating temperature (T-T)10 - 40 °C
Storage temperature (T-T)-10 - 80 °C
Sustainability
Sustainability certificatesRoHS
Weight & dimensions
Weight370 g
Width70 mm
Depth125 mm
Height195 mm
Package weight900 g
Package width190 mm
Package depth273 mm
Package height109 mm
Design
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows XP Home, Windows XP Professional
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave
Product colourBlack
LED indicatorsPower, USB
CertificationCE, FCC
Packaging data
Package weight900 g
Package width190 mm
Package depth273 mm
Package height109 mm
Packaging content
Drivers includedYes
Interface adapters includedDVI-I male - VGA female
ManualYes
Cables includedUSB
AC adapter includedYes
Certificates
CertificationCE, FCC
Other features
Number of microphone inputs1
Minimum system requirementsCPU: i3 Dual core 2.8GHz + RAM: 2GB +
ChipsetDisplayLink - DL-3900, VLI - VL810, Terminus - FE1.1, Realtek - RTL8211E
Manufacturer StarTech.com
