£77.54 £64.62

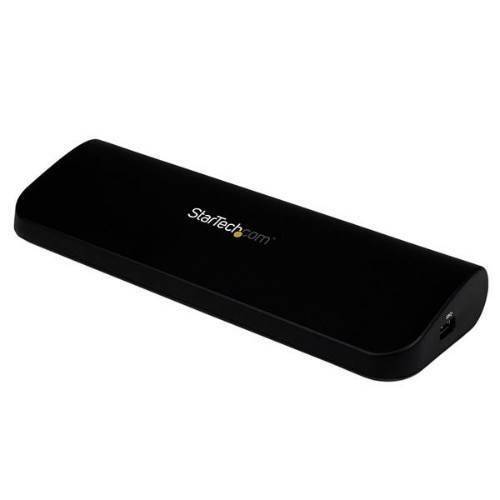

StarTech.com Dual-Monitor USB 3.0 Docking Station with HDMI & DVI/VGA

£77.54 £64.62
In stock
SKU

USB3SDOCKHDV

Need help ordering? Call 0208 200 2000

StarTech.com USB 3.0 Docking Station with HDMI and DVI/VGA - Dual Monitor - Universal Laptop Dock - Mac and Windows Compatible (USB3SDOCKHDV)
Laptop Docking Station | USB 3.0 | TAA Compliant | Mac & Windows

This USB 3.0 dock combines three USB 3.0 ports, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port, into a single docking station for maximum productivity.

Display Adaptability

Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI, DVI and VGA external monitor outputs. Each video output supports HD video resolutions (2048x1152 max) and HD video playback for an ideal solution to expanding your notebook's video capability.

Available display combinations:

HDMI + VGA

HDMI + DVI

Integrated USB Hub

The built-in USB hub features three USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse, as if they are connected directly to your laptop.

Direct Ethernet Connectivity

The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a wired network.

StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime Technical Support.

The StarTech.com Advantage

- Save time by connecting multiple peripherals through a single cable
- Increase available screen space with dual independent HD video outputs
- Expand connectivity with additional USB 3.0 ports
More Information
SKU USB3SDOCKHDV
EAN 0065030851299
Specification
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
VGA (D-Sub) ports quantity1
DVI-D ports quantity1
Microphone inYes
Headphone outputs1
DC-in jackYes
Connectivity technologyWired
Network
Full duplexYes
Auto MDI/MDI-XYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports1
Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Performance
Maximum digital resolution1920 x 1200 pixels
Maximum analog resolution2048 x 1152 pixels
Full duplexYes
Auto MDI/MDI-XYes
Product colourBlack
Card reader integratedNo
Cable lock slotYes
Data transfer rate5 Gbit/s
CertificationFCC, CE, TAA, REACH
Cable lock slot typeKensington
Housing materialPlastic
USB data transfer rates12,480,5000 Mbit/s
Technical details
Product colourBlack
Cable lock slotYes
Data transfer rate5 Gbit/s
Sustainability certificatesRoHS
Harmonized System (HS) code84733020
Storage
Card reader integratedNo
Power
Input current0.9 A
Power plug typeType B
Compatible power plug typesAU, EU, UK, US
AC input voltage100-240 V
Power consumption (typical)20 W
Output voltage5 V
Output current4 A
Software
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave
Mac compatibilityYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 90%
Sustainability
Sustainability certificatesRoHS
Weight & dimensions
Weight295 g
Width178 mm
Depth304 mm
Height44 mm
Package weight878 g
Package width195 mm
Package depth296 mm
Package height66 mm
Design
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave
Product colourBlack
Cable lock slotYes
CertificationFCC, CE, TAA, REACH
Cable lock slot typeKensington
Packaging data
Package weight878 g
Package width195 mm
Package depth296 mm
Package height66 mm
Packaging content
Drivers includedYes
ManualYes
Cables includedUSB
AC adapter includedYes
Certificates
CertificationFCC, CE, TAA, REACH
Other features
USB data transfer rates12,480,5000 Mbit/s
ChipsetDisplayLink - DL-3900, Genesys Logic - GL3520, Realtek - RTL8211E
Manufacturer StarTech.com
