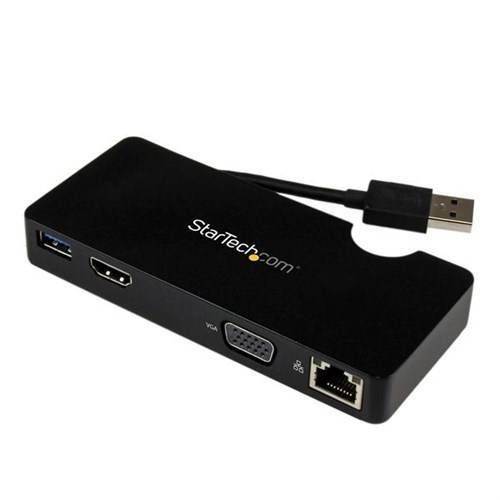

StarTech.com Travel Docking Station for Laptops - HDMI or VGA - USB 3.0

£84.24 £70.20
In stock
SKU

USB3SMDOCKHV

Need help ordering? Call 0208 200 2000

StarTech.com Portable Laptop Docking Station - HDMI or VGA and Gigabit Ethernet - USB 3.0 Universal Dock for Mac / Windows (USB3SMDOCKHV)
Create a mobile workstation using your Ultrabook or laptop USB 3.0 port via this portable USB 3.0 mini dock

The travel docking station for laptops lets you transform your laptop or Ultrabook into a mobile workstation. It adds HDMI or VGA video output, a USB 3.0 hub port, and a Gigabit Ethernet RJ45 port, through a single USB 3.0 host connection. The travel-friendly dock helps you overcome the port limitations of modern mobile computers, making it ideal for your laptop, Microsoft Surface Pro 4, Surface Pro 3, Surface 3, Surface Pro 2 or Surface Book.

Now, you can avoid the nuisance of carrying multiple adapters. By consolidating four essential connection ports into one convenient device, the travel dock is the the perfect laptop accessory. It features a lightweight, compact design that fits nicely into your travel bag and also features an integrated host connection cable that tucks neatly into the docking stations casing.

A versatile solution for connecting an additional display to your laptop, the travel docking station offers HDMI video output with audio, or VGA video output, providing two popular interfaces for connecting a television, projector, or monitor as a second display, with support for resolutions up to 2048x1152 (QWXGA). Leveraging the high-bandwidth (5Gbps) USB 3.0 interface to deliver flexible video output, a USB 3.0 hub port, and Gigabit Ethernet, you can quickly set up a multi-functional workstation while on the run, without sacrificing one of your laptop USB ports.

Setup is seamless and hassle-free; the travel dock will automatically download the latest driver when connected to a Mac or Windows system with an active network connection.

The USB3SMDOCKHV is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Consolidates several connection ports into a single, multi-function adapter, including flexible HDMI or VGA output plus a USB 3.0 and Gigabit Ethernet port
- Portable and travel-friendly design that lets you take the adapter anywhere, with a built-in cable and no external power required
- Fast, hassle-free setup. Latest drivers are automatically downloaded in Windows systems when an active network connection is present
More Information
SKU USB3SMDOCKHV
EAN 0065030858281
Specification
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-A
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
VGA (D-Sub) ports quantity1
Microphone inNo
Connectivity technologyWired
Network
Full duplexYes
Auto MDI/MDI-XYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports1
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Performance
UASP supportYes
Maximum digital resolution2048 x 1152 pixels
Full duplexYes
Auto MDI/MDI-XYes
Product colourBlack
Card reader integratedNo
Brand compatibilityAny brand
LED indicatorsActivity, Link
Data transfer rate5 Gbit/s
CertificationCE, FCC, REACH
Housing materialPlastic
Technical details
Product colourBlack
Brand compatibilityAny brand
Data transfer rate5 Gbit/s
Cable length0.093 m
Sustainability certificatesRoHS
Harmonized System (HS) code84733020
Storage
Card reader integratedNo
Power
Power source typeUSB
Software
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave
Indication
LED indicatorsActivity, Link
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 90%
Sustainability
Sustainability certificatesRoHS
Weight & dimensions
Weight82 g
Width55 mm
Depth125 mm
Height17 mm
Package weight192 g
Package width167 mm
Package depth143 mm
Package height43 mm
Design
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave
Product colourBlack
LED indicatorsActivity, Link
CertificationCE, FCC, REACH
Packaging data
Package weight192 g
Package width167 mm
Package depth143 mm
Package height43 mm
Packaging content
Drivers includedYes
ManualYes
Certificates
CertificationCE, FCC, REACH
Other features
ChipsetDisplayLink - DL-3700
Cable length0.093 m
Manufacturer StarTech.com
