£102.45 £85.38

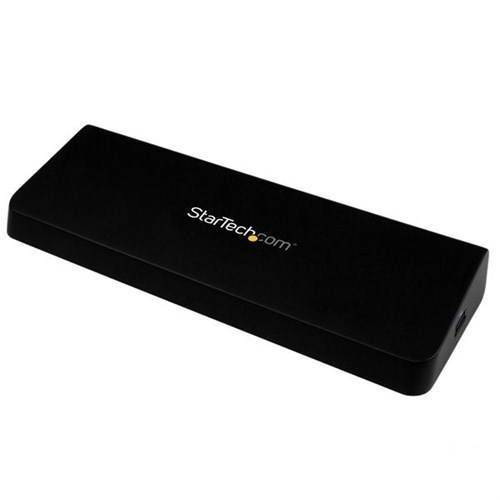

StarTech.com USB 3.0 Docking Station Dual Monitor with HDMI & 4K DisplayPort - USB 3.0 to 4x USB-A, Ethernet, HDMI and DP - USB Type A Universal Laptop Docking Station for Mac & Windows

£102.46 £85.38
In stock
SKU

USB3DOCKHDPC

Need help ordering? Call 0208 200 2000

StarTech.com USB 3.0 Docking Station Dual Monitor with HDMI & 4K DisplayPort - USB 3.0 to 4x USB-A, Ethernet, HDMI and DP - USB Type A Universal Laptop Docking Station for Mac & Windows (USB3DOCKHDPC)
Laptop Docking Station | Mac & Windows | USB Fast Charge Port | 4 USB Ports | TAA Compliant

This TAA compliant dual-monitor USB 3.0 docking station combines a 4-port USB 3.0 hub, headphone and microphone audio connectors, a USB fast-charge port, and a GbE RJ45 Port with Wake-on-LAN (WOL).

4K Ultra HD Resolutions 

This 4K USB docking station supports DisplayPort plus HDMI dual video, or a single DP display at 4K Ultra HD resolutions (3840 x 2160p).

Maximum Supported Resolutions*

Video Output Configuration

Max DisplayPort Resolution

Max HDMI Resolution

DisplayPort

(Single Display)

3840 x 2160p (4K)

N/A

HDMI

(Single Display)

N/A

2560 x 1440p

DisplayPort and HDMI

(Two Displays)

2048 x 1152p

2048 x 1152p

*Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.

Integrated USB 3.0 Hub

The built-in USB hub features four USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they are connected directly to your laptop.

USB Fast Charge 

The USB 3.0 dock’s always-on USB fast-charge port charges devices without a laptop connection and supports USB Battery Charging Specification 1.2 making it easy to charge your tablets and other mobile devices.

Direct Ethernet Connectivity

The integrated RJ45 Ethernet port supports speeds of 10/100/1000Mbps, giving you an instant connection to a reliable wired network.

Easy to Use 

This docking station with DisplayPort and HDMI is universally compatible, working with Mac and Windows USB 3.0 equipped laptops and includes a 2ft. USB 3.0 cable for quick setup.  

StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 docking station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.

The StarTech.com Advantage

- FULL FEATURE DOCK: USB 3.0 Type-A dock with dual monitor options (HDMI & DisplayPort), 4x USB-A 5Gbps ports (one Fast Charge), Gigabit Ethernet, headset audio port, and K-slot for securing the dock
- FLEXIBLE DISPLAY SETUP: This docking station supports different display options with dual monitors DP & HDMI (2048 x 1152p and 1920 x 1080p), single DP (4K 30Hz) OR single HDMI (up to 2560 x 1440p)
- USB-A LAPTOP COMPATIBILITY: This DisplayLink certified laptop computer docking station works with new or legacy laptops from brands like HP, Dell, Lenovo, Microsoft Surface Pro, and Chromebooks
More Information
SKU USB3DOCKHDPC
EAN 0065030859233
Specification
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Headphone connectivity3.5 mm
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB connector typeUSB Type-A
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
DisplayPorts quantity1
Headphone outputs1
Connectivity technologyWired
Network
Full duplexYes
Auto MDI/MDI-XYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Wake-on-LAN readyYes
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports1
Performance
UASP supportYes
Maximum digital resolution3840 x 2160 pixels
Full duplexYes
Auto MDI/MDI-XYes
Product colourBlack
Card reader integratedNo
Brand compatibilityAny brand
Cable lock slotYes
LED indicatorsActivity, Link
Data transfer rate5 Gbit/s
Charging functionYes
CertificationCE, FCC, DisplayLink
Housing materialPlastic, Steel
USB data transfer rates5000 Mbit/s
Technical details
Product colourBlack
Brand compatibilityAny brand
Cable lock slotYes
Data transfer rate5 Gbit/s
Charging functionYes
Cable length0.6 m
Sustainability certificatesRoHS
Harmonized System (HS) code84733020
Products per master (outer) case150 pc(s)
Master (outer) case width370 mm
Master (outer) case length415 mm
Master (outer) case height275 mm
Products per shipping (inner) case150 pc(s)
Storage
Card reader integratedNo
Power
Input current1.5 A
Compatible power plug typesAU, EU, UK, US
AC input voltage100-240 V
Power consumption (typical)32.5 W
Output voltage5 V
Output current6.5 A
Software
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave
Mac compatibilityYes
Other operating systems supportedChrome
Indication
LED indicatorsActivity, Link
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 80 °C
Operating relative humidity (H-H)0 - 90%
Sustainability
Sustainability certificatesRoHS
Weight & dimensions
Weight277 g
Width76 mm
Depth227 mm
Height24 mm
Package weight1.1 kg
Package width251 mm
Package depth198 mm
Package height71 mm
Design
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave
Product colourBlack
Cable lock slotYes
LED indicatorsActivity, Link
CertificationCE, FCC, DisplayLink
Packaging data
Package weight1.1 kg
Package width251 mm
Package depth198 mm
Package height71 mm
Packaging content
Drivers includedYes
ManualYes
Cables includedAC, USB
AC adapter includedYes
Certificates
CertificationCE, FCC, DisplayLink
Logistics data
Products per master (outer) case150 pc(s)
Master (outer) case width370 mm
Master (outer) case length415 mm
Master (outer) case height275 mm
Products per shipping (inner) case150 pc(s)
Other features
USB data transfer rates5000 Mbit/s
ChipsetDisplayLink - DL-5900, VLI - VL812
Cable length0.6 m
Manufacturer StarTech.com
PDF Url https://objects.icecat.biz/objects/m
In Stock Y
