£68.72 £57.27

StarTech.com USB-C Multiport Adapter, 4K 60Hz HDMI 2.0b, HDR, USB 3.2 Gen 2 10Gbps Hub (2xUSB-C, 1xUSB-A), 100W PD Pass-Through, Mini Travel Dock, 12"/30cm Cable, Laptop Docking Station

£68.72 £57.27
In stock
SKU

DKT31CH2CPD3

Need help ordering? Call 0208 200 2000

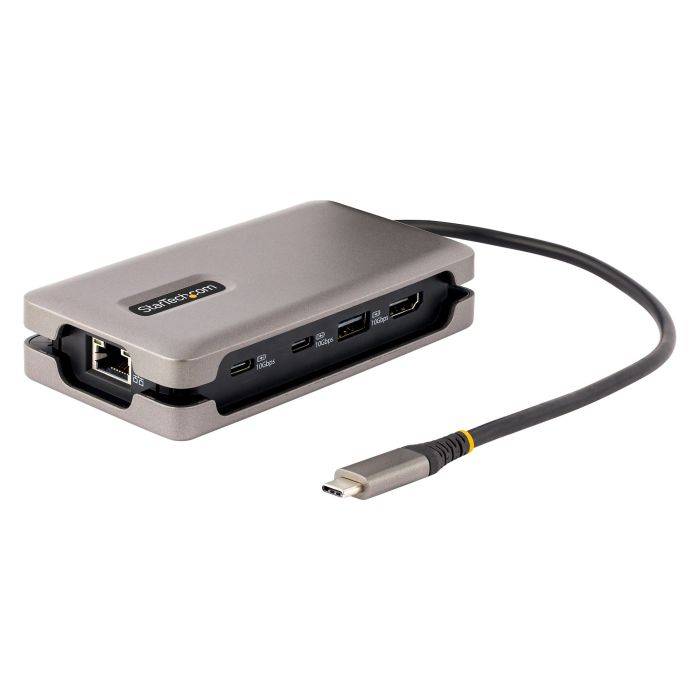

StarTech.com USB-C Multiport Adapter, 4K 60Hz HDMI 2.0b, HDR, USB 3.2 Gen 2 10Gbps Hub (2xUSB-C, 1xUSB-A), 100W PD Pass-Through, Mini Travel Dock, 12"/30cm Cable, Laptop Docking Station (DKT31CH2CPD3)
4K 60Hz HDMI | 100W PD Pass-Through | 12" (30cm) Cable | 3-Port USB Hub (10Gbps)This USB-C multiport adapter with DP 1.4 supports 4K 60Hz HDMI® (HDR) and turns a USB-C™ laptop or tablet into a workstation, anywhere you go.Enhance ProductivityThe portable docking station provides 4K 60Hz HDMI video output, two USB 3.2 Gen 2 Type-C (10Gbps) ports, one USB 3.2 Gen 2 Type-A (10Gbps) port, and a Gigabit Ethernet port (PXE and WoL support) all through one connection to your laptop's USB-C or Thunderbolt 3/4™ port. A USB-C DisplayPort 1.4 Alt-Mode port is required for 4K 60Hz HDMI output.Host ConnectionMaximum ResolutionDP 1.4 Alternate ModeUp to 4K 60HzDP 1.2 Alternate ModeUp to 4K 30HzConnect and Charge Your USB DevicesThe USB hub features two USB-C (10Gbps) ports and one USB-A (10Gbps) port for connecting up to three USB peripherals. The USB PD pass-through port enables charging of the host laptop. USB PD is only available when a USB-C power adapter is connected to the PD pass-through port. Connect a USB-C Power Adapter to use as a standalone USB peripheral charger. The extra-long attached 12inch (30cm) USB-C host cable enables an extended reach for setup flexibility.Portable ConnectivityFor use while travelling, the USB-C adapter can operate bus-powered alone, or with a USB-C power adapter to enable laptop and peripheral charging. The docking station is lightweight and features a built-in wraparound USB-C host cable.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:• Advanced Windows Layout Utility: Setup and save custom windows layouts.• Mac Address Pass-Through Utility: To improve network security.• USB Event Monitoring Utility: To track and log connected USB devices• Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-toolsThis product is backed for 3-years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
More Information
SKU DKT31CH2CPD3
EAN 0065030891981
Specification
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
Host interfaceUSB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
Microphone inNo
Connectivity technologyWired
USB Power DeliveryYes
USB Power Delivery revision3.0
USB Power Delivery up to100 W
USB Type-C DisplayPort Alternate ModeYes
Network
Full duplexYes
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports1
Performance
UASP supportYes
Maximum digital resolution3840 x 2160 pixels
Full duplexYes
Product colourGrey
Card reader integratedNo
LED indicatorsYes
Data transfer rate10 Gbit/s
HD type4K Ultra HD
Housing materialPlastic
Maximum refresh rate60 Hz
High Dynamic Range (HDR) supportedYes
Technical details
Product colourGrey
Data transfer rate10 Gbit/s
Cable length0.3 m
Sustainability complianceYes
Sustainability certificatesCE, RoHS
Products per master (outer) case70 pc(s)
Master (outer) case width465 mm
Master (outer) case length335 mm
Master (outer) case height440 mm
Storage
Card reader integratedNo
Power
Power source typeUSB
Power consumption (typical)15 W
Software
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64
Mac operating systems supportedMac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Linux operating systems supportedYes
Other operating systems supportedChrome
Mobile operating systems supportedAndroid, iPadOS
Indication
LED indicatorsYes
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 85%
Sustainability
Sustainability complianceYes
Sustainability certificatesCE, RoHS
Weight & dimensions
Weight93 g
Width64 mm
Depth124 mm
Height26 mm
Package weight149 g
Package width143 mm
Package depth172 mm
Package height30 mm
Design
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64
Mac operating systems supportedMac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Product colourGrey
LED indicatorsYes
Packaging data
Package weight149 g
Package width143 mm
Package depth172 mm
Package height30 mm
Logistics data
Products per master (outer) case70 pc(s)
Master (outer) case width465 mm
Master (outer) case length335 mm
Master (outer) case height440 mm
Other features
ChipsetRealtek - RTD2172L, Realtek - RTL8153B, VIA - VL822, VIA - VL103
Cable length0.3 m
Manufacturer StarTech.com
PDF Url https://objects.icecat.biz/objects
In Stock Y
