£87.28 £72.73

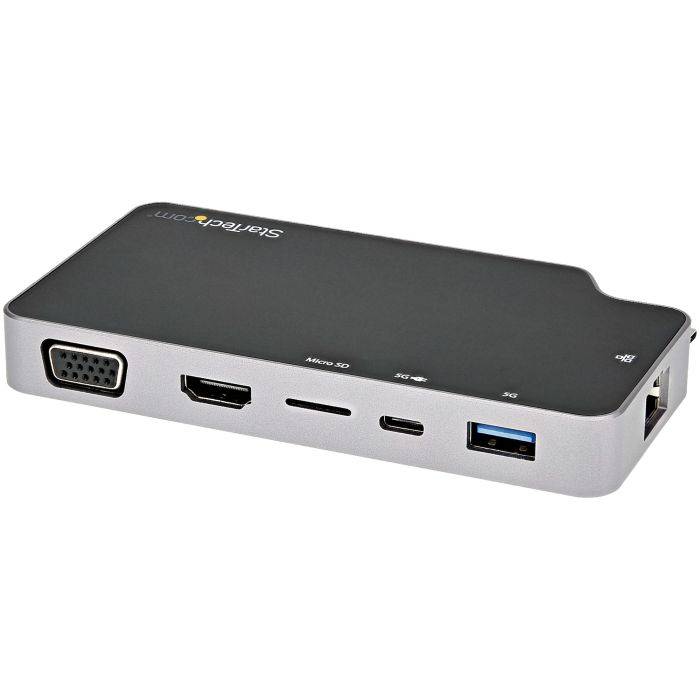

StarTech.com USB C Multiport Adapter - USB-C to 4K HDMI or VGA Video with 100W Power Delivery Pass-through, 2-Port 10Gbps USB Hub, MicroSD, GbE - USB 3.1 Gen 2 Type-C Mini/Travel Dock

£87.29 £72.74
In stock
SKU

CDP2HVGUASPD

Need help ordering? Call 0208 200 2000

StarTech.com USB C Multiport Adapter - USB-C to 4K HDMI or VGA Video with 100W Power Delivery Pass-through, 2-Port 10Gbps USB Hub, MicroSD, GbE - USB 3.1 Gen 2 Type-C Mini/Travel Dock (CDP2HVGUASPD)
USB-C Multiport Adapter | USB 3.1 Gen 2 (10Gbps) | 4K HDMI or 1080p VGA | Presentation Mode Switch | 100W PD 3.0 Pass ThroughThis USB-C™ multiport adapter with HDMI/VGA lets you add vital connections to your MacBook or Windows laptop, through a single USB-C port. The adapter features a presentation mode switch, that when activated ensures the computer will not go into sleep standby or hibernation.Connect a 4K HDMI or 1080p VGA MonitorFor maximum productivity, connect your USB-C or Thunderbolt 3 laptop to a 4K 30Hz monitor, using this USB-C to 4K HDMI / 1080p VGA multiport adapter. You can also connect to an HDMI projector or TV in a boardroom or other meeting space, to deliver presentations on a shared screen.Presentation Mode SwitchWhen you turn on this switch, the USB-C to HDMI adapter prevents your computer from launching its screen saver, going to sleep, or entering power save mode while presenting. Plus, the built-in MicroSD card reader can be used as external storage - ideal for storing & delivering presentations at boardroom/conference room meetings.• Left Switch Position: Enables Presentation Mode• Right Switch Position: Disables Presentation Mode100W Power Delivery 3.0 PassthroughThe USB-C adapter lets you power and charge your USB-C laptop during a presentation or while you're working, with a USB-C Power Delivery port. Even if your laptop has only a single USB-C port available, you can keep your laptop powered. Device reserves 15 watts, avoiding video flicker, device dropouts and power overdraw which is commonly seen in other hubs with less reliable power distribution.Add Downstream USB-A & USB-C PortsThis USB-C multiport adapter offers a USB 3.1 Gen 2 Type-A port (10Gbps), and a USB-C 3.1 Gen 2 port that can be used for power delivery charging, or if power delivery is not required, can be used as a 10Gbps data port for connecting USB-C peripherals.MicroSD 4.0 Card ReaderThis USB-C multiport adapter features a memory card slot, providing fast read and write access for microSD™ memory cards through USB 3.0. It's ideal for transferring photos, videos or presentations from your SD cards to your USB-C enabled laptop or tablet.Portable & CompactThe compact all-in-one adapter is a vital accessory for your USB-C laptop. With its small-footprint design, you can take it with you anywhere you would use your laptop.CDP2HVGUASPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery 3.0.The StarTech.com Advantage
More Information
SKU CDP2HVGUASPD
EAN 0065030875493
Specification
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Host interfaceUSB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
VGA (D-Sub) ports quantity1
Microphone inNo
Connectivity technologyWired
USB Power DeliveryYes
USB Power Delivery revision3.0
USB Power Delivery up to100 W
Network
Networking standardsIEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Wake-on-LAN readyYes
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports1
Performance
Maximum digital resolution3840 x 2160 pixels
Number of displays supported1
Product colourBlack, Grey
Card reader integratedYes
LED indicatorsYes
Data transfer rate10 Gbit/s
Compatible memory cardsMicroSD (TransFlash)
CertificationCE, FCC, RoHS
HD type4K Ultra HD
Housing materialAluminium, Plastic
Maximum refresh rate60 Hz
Technical details
Product colourBlack, Grey
Data transfer rate10 Gbit/s
Cable length0.13 m
Harmonized System (HS) code84733020
Products per master (outer) case70 pc(s)
Master (outer) case width473 mm
Master (outer) case length331 mm
Master (outer) case height440 mm
Storage
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Power
Power consumption (typical)15 W
Software
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur
Indication
LED indicatorsYes
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)5 - 90%
Weight & dimensions
Weight124.3 g
Width125 mm
Depth68 mm
Height16 mm
Package weight138.3 g
Package width142 mm
Package depth170 mm
Package height30 mm
Design
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur
Product colourBlack, Grey
LED indicatorsYes
CertificationCE, FCC, RoHS
Packaging data
Package weight138.3 g
Package width142 mm
Package depth170 mm
Package height30 mm
Packaging content
Quick start guideYes
Certificates
CertificationCE, FCC, RoHS
Logistics data
Products per master (outer) case70 pc(s)
Master (outer) case width473 mm
Master (outer) case length331 mm
Master (outer) case height440 mm
Other features
ChipsetRealtek - RTD2141DS, Realtek - RTS5423, Realtek - RTL8153B, Realtek - RTS5306
Cable length0.13 m
Manufacturer StarTech.com
