£243.31 £202.75

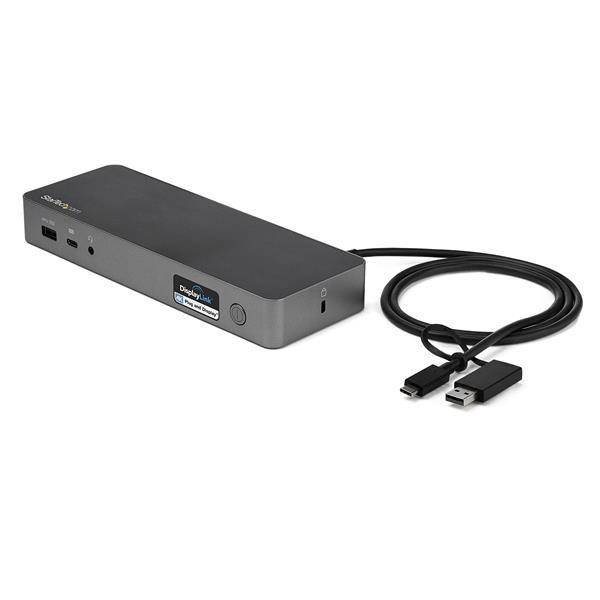

StarTech.com USB-C & USB-A Dock - Hybrid Universal Laptop Docking Station with 100W Power Delivery - Dual Monitor 4K 60Hz HDMI & DisplayPort - 4x USB 3.1 Gen 1 Hub, GbE - Windows & Mac

£243.31 £202.76
In stock
SKU

DK30C2DPEPUE

Need help ordering? Call 0208 200 2000

StarTech.com USB-C & USB-A Dock - Hybrid Universal Laptop Docking Station with 100W Power Delivery - Dual Monitor 4K 60Hz HDMI & DisplayPort - 4x USB 3.1 Gen 1 Hub, GbE - Windows & Mac (DK30C2DPEPUE)
Dual 4K60 | DisplayPort and/or HDMI | USB-IF Certified | 3x USB-A | 1x USB-C | Mac, Windows® & Chrome OS™ | Lock SlotTransition from the legacy USB-A (USB 3.0) to the new USB-C with this certified universal laptop docking station for USB-C and USB-A laptops. The USB-C dock features 100W Power Delivery 3.0, dual HDMI and/or DisplayPort monitors, fast-charge, and both USB-C and USB-A peripheral ports.The Uniquely Universal Host CableThe USB-C dock comes with a universal host cable that is designed with an attached USB-C to USB-A adapter to accommodate USB-A laptops. The cable also features an extended length of 1 meter (3.3 ft.) to support a wide variety of workstation setups.Replacement or extra cables can be purchased separately here.100W Power DeliveryFor high performance laptops that require more charging power, the dock powers and charges your laptop as you work with 100W PD for faster charging, using the 150W power adapter - all through a single cable.Flexible Monitor ConnectionsThis is a dual 4K60Hz video docking station with support for both Ultra HD DisplayPort and/or HDMI monitors that lets you configure your video connections to best suit your needs.•Dual 4K DisplayPort | Up to 4096 x 2160p @ 60Hz•Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz•Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz•Single 5K DisplayPort * | Up to 5120 × 2880*Requires monitor support for 5K using two DP portsCertified for Universal Compatibility & ReliabilityThis docking station is fully certified to meet top industry standards for USB-IF (USB 3.1 Gen 1, USB Type-C and Power Delivery), VESA DisplayPort and DisplayLink (video connections) certification to guarantee the highest quality, reliability, and compatibility.Easy and Convenient SetupFor fast setup right out of the box, the combo cable (USB-C with attached USB-A adapter) lets you connect any laptop. The dock has mounting holes for workstation mounting (bracket not included).The Connections You NeedConnect your devices with four USB 3.1 ports: 1x USB-C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (PXE Boot support & Wake-on-LAN) and 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft.For more installation flexibility, you can use StarTech.com mounting brackets (SSPMSUDWM & SSPMSVESA) that are specifically designed for our docks and hubs, to mount your dock to a desk, wall, or other surfaces to give you the customized setup you need.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:•Advanced Windows Layout Utility : To setup and save custom windows layouts.•Mac Address Pass-Through Utility : To improve network security.•USB Event Monitoring Utility : To track and log connected USB devices•Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-ToolsThe IT Pro's Choice Since 1985StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.DK30C2DPEPUE is backed by a StarTech.com 3-year warranty and free lifetime technical support.The StarTech.com Advantage
More Information
SKU DK30C2DPEPUE
EAN 0065030879989
Specification
Ports & interfaces
Combo headphone/mic portYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Headphone connectivity3.5 mm
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ethernet LAN (RJ-45) ports1
HDMI ports quantity2
DisplayPorts quantity2
Headphone outputs1
DC-in jackYes
Connectivity technologyWired
Network
Full duplexYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
10G supportNo
Performance
UASP supportYes
Maximum digital resolution5120 x 2880 pixels
Full duplexYes
On/off switchYes
Product colourBlack, Grey
Card reader integratedNo
Cable lock slotYes
Data transfer rate5 Gbit/s
CertificationCE, FCC, REACH
Cable lock slot typeKensington
Housing materialPlastic
Technical details
Product colourBlack, Grey
Cable lock slotYes
Data transfer rate5 Gbit/s
Sustainability certificatesRoHS
Harmonized System (HS) code84733020
Products per master (outer) case6 pc(s)
Master (outer) case width280 mm
Master (outer) case length335 mm
Master (outer) case height302 mm
Storage
Card reader integratedNo
Power
Input current2.5 A
Power plug typeType N
Compatible power plug typesEU, UK
AC input voltage100 - 240 V
Power consumption (typical)170 W
Output voltage20 V
Output current8.5 A
Power supply100 W
Software
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina
Mac compatibilityYes
Other operating systems supportedChrome
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%
Sustainability
Sustainability certificatesRoHS
Weight & dimensions
Weight280 g
Width80 mm
Depth220 mm
Height30 mm
Package weight1.3 kg
Package width155 mm
Package depth270 mm
Package height90 mm
Design
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina
Product colourBlack, Grey
Cable lock slotYes
CertificationCE, FCC, REACH
Cable lock slot typeKensington
Packaging data
Package weight1.3 kg
Package width155 mm
Package depth270 mm
Package height90 mm
Packaging content
Quick start guideYes
Cables includedUSB Type-A to USB Type-C
AC adapter includedYes
Certificates
CertificationCE, FCC, REACH
Logistics data
Products per master (outer) case6 pc(s)
Master (outer) case width280 mm
Master (outer) case length335 mm
Master (outer) case height302 mm
Other features
ChipsetDisplayLink - DL6950, Genesys Logic - GL3523, Fresco Logic - FL7102, Fresco Logic - FL7201, VIA Labs - VL160, RealTek - RTL8153, Texas Instruments - TS3A225E
Manufacturer StarTech.com
PDF Url https://objects.icecat.biz/objects/m
In Stock Y
