£233.94 £194.95

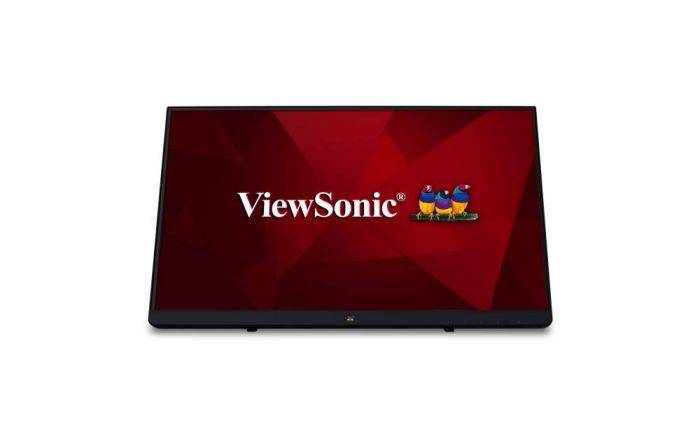

Viewsonic TD2230 touch screen monitor 55.9 cm (22") 1920 x 1080 pixels Black Multi-touch

£233.94 £194.95
In stock
SKU

TD2230

Need help ordering? Call 0208 200 2000

22”, 1920 x 1080, 1000:1, 7ms, TFT, 178 º / 178 º , 21,5”, 50000000:1, LED, 250 cd/m2, 7H, USB 3.0, HDMI, VGA, DisplayPort, 3W x2, 19W, 22W, 25W, 28W, 100-240 V, 50/60Hz, OSD, 0 º - 40 º C, 20%-90%, VESA, 24-82 kHz, 50-76 kHz, 20 º -70 º, 4.7 kg, 3.6 kg, 3.6 kg


10-Point Projected Capacitive Touch
Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.

SuperClear IPS Panel Technology
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear IPS panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

Frameless Design
Say goodbye to the thick, clunky plastic frames set over the edges of traditional monitors. This monitor features a frameless edge-to-edge glass faceplate with an ultra-slim bezel beneath the glass. With its sleek, eye-catching design, this elegant monitor looks as good as it performs.

Versatile Connectivity
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your monitor to a variety of devices.

Durable, Scratch-resistant Screen
This touch display is designed with a durable, protective glass faceplate. This provides increased scratch protection to ensure durability, as well as a consistent, high-quality touch experience in high-traffic areas such as educational settings, or other public environments where the touch display can be used as a kiosk.

Stable Bookstand Design
A stable, integrated bookstand design makes it easy to adjust the angle of this display for a better user experience. The display can tilted or laid completely flat on a tabletop for a more comfortable work environment.

Enhanced ViewingComfort
Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.

Cross-platform Compatibility
Cross compatibility with a wide range of operating systems include Windows 10, and certain Android and Linux versions.

VESA-CompatibleMount
Mount the monitor as you see fit using its convenient VESA-compatible mount design.

3-year LimitedWarranty
Have peace of mind in the quality and reliability of your ViewSonic monitor—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.
More Information
SKU TD2230
EAN 0766907842418
Specification
Audio
Built-in speaker(s)Yes
RMS rated power6 W
Performance
Built-in speaker(s)Yes
RMS rated power6 W
Built-in microphoneNo
Built-in cameraNo
AMD FreeSyncNo
NVIDIA G-SYNCNo
Windows operating systems supportedWindows 10, Windows 7, Windows 8, Windows 8.1
Mac operating systems supportedYes
Linux operating systems supportedYes
Other operating systems supportedAndroid, Chrome
Display
Screen shapeFlat
HD typeFull HD
Display technologyLCD
Contrast ratio (dynamic)50000000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.24825 x 0.24825 mm
Horizontal scan range24 - 82 kHz
Vertical scan range50 - 76 Hz
Supported graphics resolutions640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Display resolution1920 x 1080 pixels
Display diagonal54.6 cm (21.5")
Contrast ratio (typical)1000:1
Touchscreen typeMulti-user
TouchscreenYes
Number of simultaneous touchpoints10
Panel typeADS
Display diagonal (metric)54.6 cm
Touch technologyMulti-touch
Touchscreen technologyProjected capacitive system
Display brightness250 cd/m²
Management features
On Screen Display (OSD)Yes
Number of OSD languages12
Multimedia
Number of speakers2
Built-in speaker(s)Yes
RMS rated power6 W
Built-in microphoneNo
Built-in cameraNo
Design
CertificationcULus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BIS, CCC, China RoHS, China Energy Label, CECP
Product colourBlack
Camera
Built-in cameraNo
Ports & interfaces
Built-in USB hubYes
HDMI ports quantity1
DisplayPorts quantity1
Audio input1
Audio output1
HDMIYes
HDMI version1.4
DisplayPort version1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity1
Technical details
HDMIYes
Display viewable area (HxV)476.64 x 268.11 mm
Built-in microphoneNo
Product colourBlack
Sustainability certificatesCE, EPEAT Bronze, ErP, REACH, RoHS
Power supply typeAC
Weight (with stand)3.58 kg
Touchscreen typeMulti-user
TouchscreenYes
Number of simultaneous touchpoints10
Software
Windows operating systems supportedWindows 10, Windows 7, Windows 8, Windows 8.1
Mac operating systems supportedYes
Linux operating systems supportedYes
Ergonomics
Wall mountableYes
VESA mountingYes
Panel mounting interface100 x 100 mm
Tilt angle range20 - 70°
On Screen Display (OSD)Yes
Number of OSD languages12
TiltableYes
Power
Power supply typeAC
AC input voltage100-240 V
AC input frequency50/60 Hz
Power consumption (typical)25 W
Energy efficiency class (SDR)F
Energy consumption (SDR) per 1000 hours19 kWh
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 90%
Storage relative humidity (H-H)5 - 90%
Packaging content
Cables includedAC, Audio (3.5mm), HDMI, USB
Weight & dimensions
Width (with stand)490 mm
Depth (with stand)47 mm
Height (with stand)299 mm
Weight (with stand)3.58 kg
Package width550 mm
Package depth114 mm
Package height371 mm
Package weight4.7 kg
Packaging data
Package width550 mm
Package depth114 mm
Package height371 mm
Package weight4.7 kg
Cables includedAC, Audio (3.5mm), HDMI, USB
Sustainability
Sustainability certificatesCE, EPEAT Bronze, ErP, REACH, RoHS
Logistics data
Harmonized System (HS) code85285210
Other features
HDMIYes
Power supply typeAC
Display viewable area (HxV)476.64 x 268.11 mm
Touchscreen typeMulti-user
TouchscreenYes
Number of simultaneous touchpoints10
Certificates
CertificationcULus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BIS, CCC, China RoHS, China Energy Label, CECP
Manufacturer Viewsonic
In Stock Y
