£266.08 £221.73

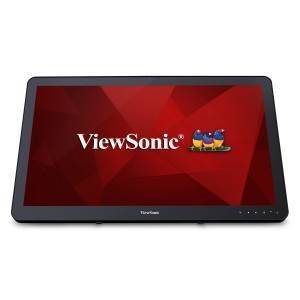

Viewsonic TD2430 touch screen monitor 59.9 cm (23.6") 1920 x 1080 pixels Black Multi-touch Kiosk

£266.09 £221.74
In stock
SKU

TD2430

Need help ordering? Call 0208 200 2000

MVA, 16.7M, 3000:1, 1920 x 1080, 23.6"
- 10-point Projected Capacitive Touch - SuperClear® MVA-type panel technology - Frameless Design - Versatile Connectivity - Durable, Scratch-resistant Screen Laid flat or angled for customized comfort, this display delivers touchscreen versatility to the max. Offering fantastic flexibility for retail, education, or business settings, the ViewSonic® TD2430 is a 24” (23.6” viewable) Full HD display with 10-point multi-touch functionality. Delivering adjustable positioning, wide-angle viewing, and a durable design, the TD2430 has everything to accommodate your unique needs. Adding even more convenience, cross-compatibility with a wide range of operating systems includes Windows 10, and certain Android and Linux versions.* With a sleek edge-to-edge screen and frameless bezel, this intuitive touchscreen performs like your favorite tablet or smartphone to deliver a highly accurate, ultra-responsive touch experience ideal for interactivity in public environments, kiosk and wayfinding applications, classroom settings, and more. *Supports Windows 7/8/10, Linux 2.6.38 or later, and Android 4.0 or later.
More Information
SKU TD2430
EAN 0766907846911
Specification
Audio
Built-in speaker(s)Yes
RMS rated power5 W
Performance
Built-in speaker(s)Yes
RMS rated power5 W
Built-in microphoneNo
Built-in cameraNo
AMD FreeSyncNo
NVIDIA G-SYNCNo
Windows operating systems supportedWindows 10, Windows 7, Windows 8
Mac operating systems supportedYes
Linux operating systems supportedYes
Other operating systems supportedAndroid
Display
Screen shapeFlat
Native aspect ratio16:9
HD typeFull HD
Display technologyLCD
Contrast ratio (dynamic)50000000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.2715 x 0.2715 mm
Horizontal scan range24 - 82 kHz
Vertical scan range50 - 75 Hz
Display resolution1920 x 1080 pixels
Display diagonal59.9 cm (23.6")
Contrast ratio (typical)3000:1
Touchscreen typeMulti-user
TouchscreenYes
Number of simultaneous touchpoints10
Panel typeVA
Display diagonal (metric)60 cm
Touch technologyMulti-touch
Touchscreen technologyProjected capacitive system
Display brightness200 cd/m²
Multimedia
Number of speakers2
Built-in speaker(s)Yes
RMS rated power5 W
Built-in microphoneNo
Built-in cameraNo
Design
CertificationcTUVus, FCC-B, ICES003, Energy Star 8.0, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, CCC, China RoHS, China Energy Label, CECP
Product colourBlack
Camera
Built-in cameraNo
Ports & interfaces
Built-in USB hubYes
Headphone outYes
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DisplayPorts quantity1
Headphone outputs1
HDMIYes
HDMI version1.4
DisplayPort version1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity1
Technical details
Mobile operating systems supportedAndroid
HDMIYes
Display viewable area (HxV)521.28 x 293.22 mm
Built-in microphoneNo
Product colourBlack
Sustainability certificatesCE, ENERGY STAR, ErP, REACH, RoHS
Power supply typeAC
Weight (with stand)5.51 kg
Touchscreen typeMulti-user
TouchscreenYes
Number of simultaneous touchpoints10
Software
Windows operating systems supportedWindows 10, Windows 7, Windows 8
Mac operating systems supportedYes
Linux operating systems supportedYes
Ergonomics
Wall mountableYes
VESA mountingYes
Panel mounting interface100 x 100 mm
Tilt angle range20 - 53°
TiltableYes
Power
Power supply typeAC
AC input voltage100-240 V
AC input frequency50/60 Hz
Power consumption (typical)25 W
Energy efficiency class (SDR)E
Energy consumption (SDR) per 1000 hours15 kWh
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 90%
Storage relative humidity (H-H)5 - 90%
Packaging content
Cables includedAC, Audio (3.5mm), HDMI, USB
Weight & dimensions
Width (with stand)573 mm
Depth (with stand)47 mm
Height (with stand)353 mm
Weight (with stand)5.51 kg
Package width643 mm
Package depth140 mm
Package height435 mm
Package weight7.08 kg
Packaging data
Package width643 mm
Package depth140 mm
Package height435 mm
Package weight7.08 kg
Cables includedAC, Audio (3.5mm), HDMI, USB
Sustainability
Sustainability certificatesCE, ENERGY STAR, ErP, REACH, RoHS
Logistics data
Harmonized System (HS) code85285210
Other features
HDMIYes
Power supply typeAC
Mobile operating systems supportedAndroid
Display viewable area (HxV)521.28 x 293.22 mm
Touchscreen typeMulti-user
TouchscreenYes
Number of simultaneous touchpoints10
Certificates
CertificationcTUVus, FCC-B, ICES003, Energy Star 8.0, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, CCC, China RoHS, China Energy Label, CECP
Manufacturer Viewsonic
